home / Spare parts / Ice machines / BREMA / Serial GB and GB_HC
SPARE PARTS BREMA
models for ice flake machines
GB601 GB902 GB903 GB1540 GB1555 (R404A-R452A)
GB601 GB902 GB903 GB1540 GB1555 HC (R290)
Prices in Euros excluding VAT - Tarif 2024/2025 - prices may be revised whithout notice - not including installation.
Spare parts original, below list of wear parts The most common, we can supply all other parts on request.
Define well when ordering the reference, the serial number and the gas used by your machine.

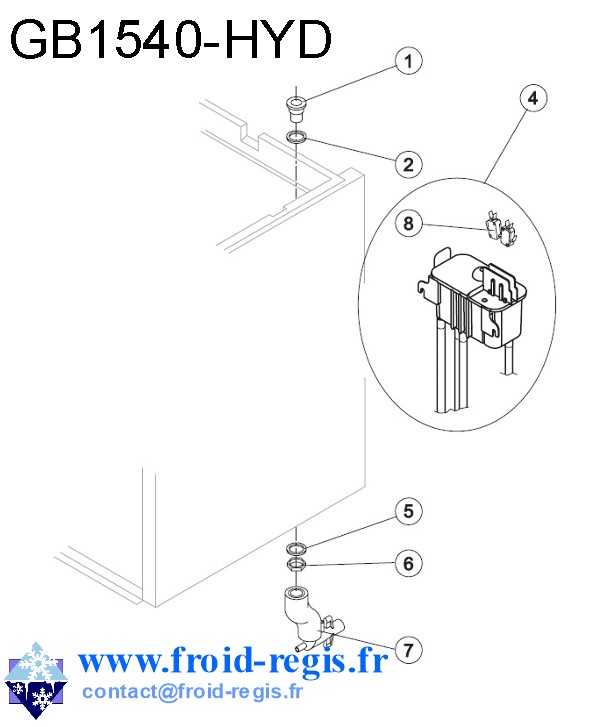

Water circuit :
| Num. | References | Photos | Designations | Prices € excluding VAT |
|
|---|---|---|---|---|---|
| 04 | BRG-B504 |
 enlarge |
Double switch basin Assy code 10145 Thank you to specify |
129 |
Shipping out  in stock |
| 07 | BRG-B507A |
 enlarge |
Discharges manifold (Air-cooled version - A) code 10235 - GB601 code 10728 Thank you to specify |
58 |
Shipping out in stock |
| 07 | BRG-B507W |  |
Discharges manifold (Water-cooled version - W) code 10240 - GB601 code 10729 Thank you to specify |
59 |
Shipping out in stock |
| 08 | BRG-B508 |
 enlarge |
Micro-switch code 23055 Thank you to specify |
18 |
Shipping out in stock |
Other parts price on request

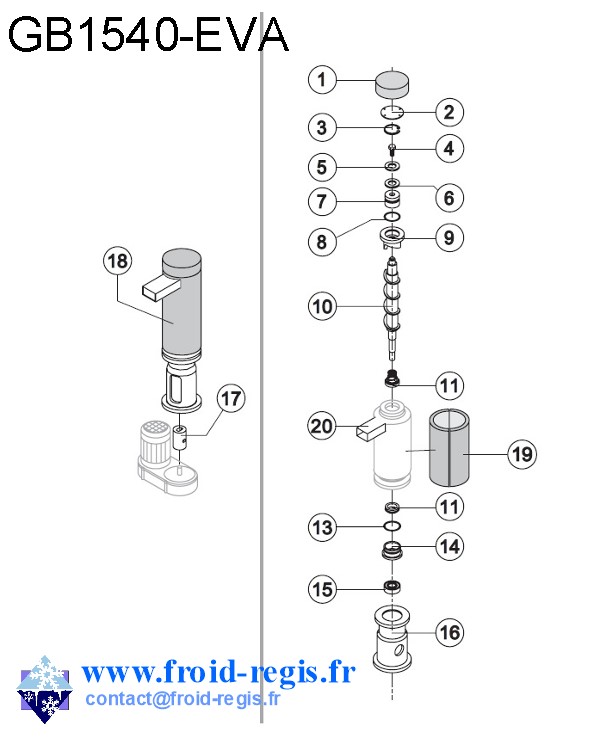

Evaporator :
| Num. | References | Photos | Designations | Prices € excluding VAT |
|
|---|---|---|---|---|---|
| - | BRG-KIT |
 enlarge |
Bearings and seals kit GB pièces 7,8,11,13 et 15 Thank you to specify |
465 |
Shipping out in stock |
| 05 | BRG-B405 |
 enlarge |
Shimming disk - code 22826
Thank you to specify |
14 |
Shipping out in stock |
| 06 | BRG-B406 |
 enlarge |
Self-lubrification disk - code 20631
Thank you to specify |
11 |
Shipping out in stock |
| 07 | BRG-B407 |
 enlarge |
Stainless steel thrust bearing code 20686 Thank you to specify |
228 |
Shipping out in stock |
| 08 | BRG-B408 |
 enlarge |
OR gasket - code 20688
Thank you to specify |
9 |
Shipping out in stock |
| 09 | BRG-B409 |
 enlarge |
Ice breaker - code 201236
Thank you to specify |
183 |
Shipping out in stock |
| 10 | BRG-B410A |
 enlarge |
Auger GB601 - code 201093
Thank you to specify |
724 |
Shipping out  sur commande |

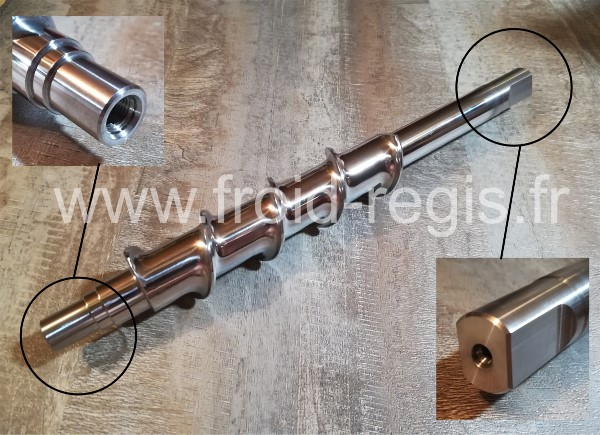

| 10 | BRG-B410 |
enlarge |
Auger GB902-903-1540-1555 - code 20783
Thank you to specify |
749 |
Shipping out sur commande |
| 11 | BRG-B411 |
 enlarge |
Ceramic seal - code 20937
Thank you to specify |
167 |
Shipping out in stock |
| 13 | BRG-B413 |
 enlarge |
OR gasket - code 20429
Thank you to specify |
8 |
Shipping out in stock |
| 14 | BRG-B414 |
 enlarge |
Reduction ring - code 20785
Thank you to specify |
94 |
Shipping out in stock |
| 15 | BRG-B415 |
 enlarge |
Bearing - code 20782
Thank you to specify |
96 |
Shipping out in stock |
| 17 | BRG-B417 |
 enlarge |
Coupling G160 code D20784 Thank you to specify |
89 |
Shipping out in stockor 15 days |
Other parts price on request

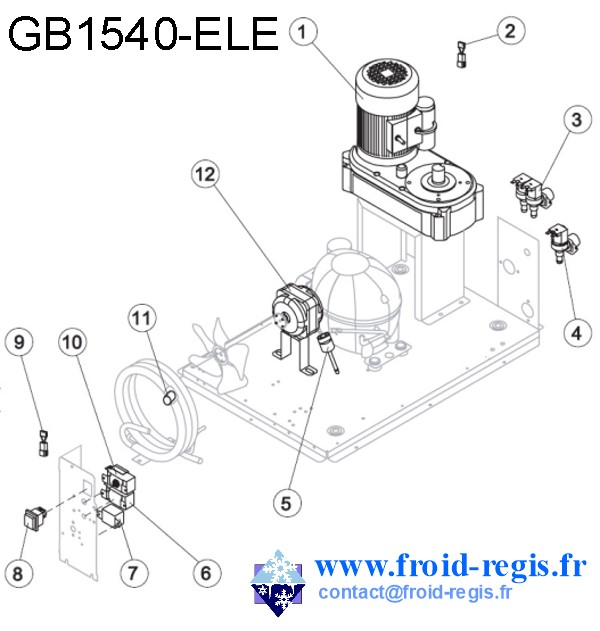

Regulation :
| Num. | References | Photos | Designations | Prices € excluding VAT |
|
|---|---|---|---|---|---|
| 01 | BRG-B613 |
 enlarge |
Gearmotor 230V/50Hz code C231030 Thank you to specify |
1 369 |
Shipping out in stock |
| 02 | BRG-B602 |  |
Anti interference filter 47nf code C23457 Thank you to specify |
29 |
Shipping out in stock |
| 03 | BRG-B606 |
 enlarge |
2 ways water inlet valve (Water-cooled version - W) GB601-902-903 code 23116 GB1540-1555 code 23010 Thank you to specify |
59 |
Shipping out in stock |
| 04 | BRG-B605 |
 enlarge |
1 way water inlet valve (Air-cooled version - A) code 23115 Thank you to specify |
37 |
Shipping out in stock |
| 06 | BRE703 |
 enlarge |
Fan cycle switch code 231123 Thank you to specify |
227 |
Shipping out in stock |
| 07 | BRG-B609 |  |
Relay code 23190 Thank you to specify |
57 |
Shipping out in stock |
| 08 | BRE707 |
 enlarge |
Green ligth switch ON/OFF 220-240V/1/50Hz code 23327 Thank you to specify |
25 |
Shipping out in stock |
| 09 | BRG-B612 |
 agrandir |
Anti interference filter 330nf code C23459 Thank you to specify |
32 |
Shipping out in stock |
| 10 | BRG-B607 |
 enlarge |
Bin thermostat R231035 Thank you to specify |
65 |
Shipping out in stock |
| 11 | BRE729 |
 enlarge |
Safety thermostat version (W) code C23114 Thank you to specify |
69 |
Shipping out in stock |
| 12 | BRE-720V |
 enlarge |
Fan motor 220-240V/1/50Hz pour GB601(A) code 231041 Thank you to specify |
32 |
Shipping out in stock |
| 12 | BRE710V |
enlarge |
Fan motor 220-240V/1/50Hz pour GB902-903(A)(W) GB601-1540-1555(W) code 23029 Thank you to specify |
32 |
Shipping out in stock |
| 12 | BRE-730V |
 enlarge |
Fan motor 220-240V/1/50Hz pour GB1540-1555(A) code 23067 Thank you to specify |
39 |
Shipping out in stock |
Other parts price on request

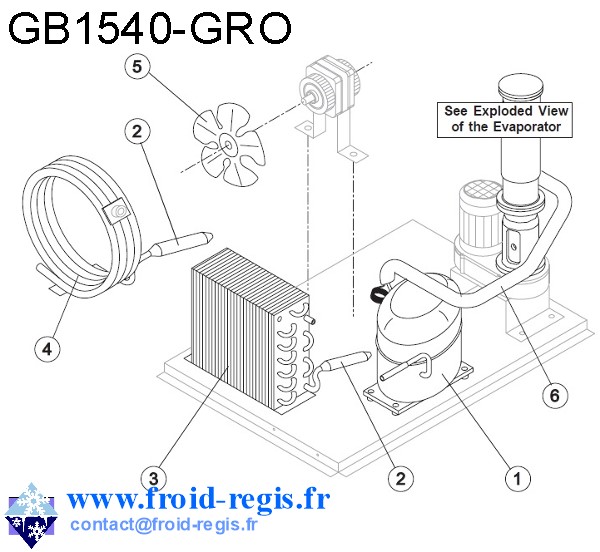

Cooling system :
Parts rate on request

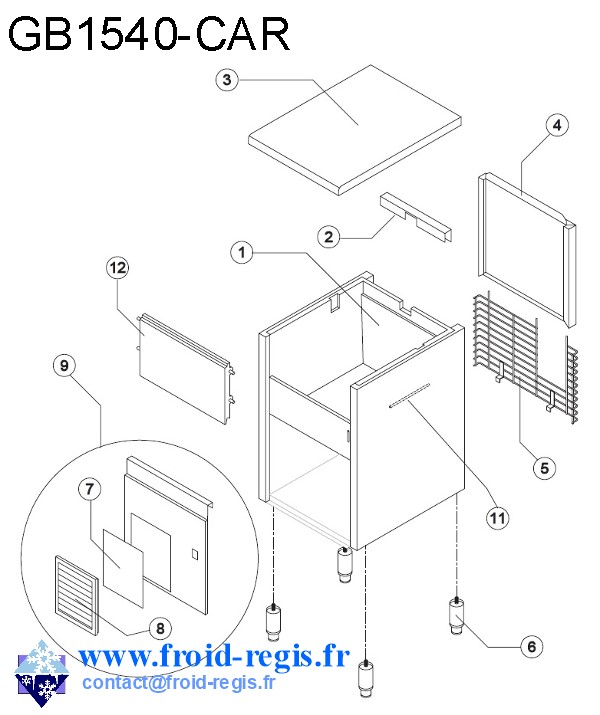

Bodywork :
| Num. | References | Photos | Designations | Prices € excluding VAT |
|
|---|---|---|---|---|---|
| 7 | BRE307 |
 enlarge |
Filtering panel code 18106 Thank you to specify |
27 |
Shipping out in stock |
| 12 | BRG210 |  |
Door GB601 code C10713 Thank you to specify |
155 |
Shipping out in stock |
| 12 | BRM119 | |
Door GB602-903 code C10297 Thank you to specify |
207 |
Shipping out in stock |
| 12 | BRM129 | |
Door GB1540-1555 code C10275 Thank you to specify |
219 |
Shipping out in stock |
Other parts price on request
