home / Spare parts / Flake ice machines / SIMAG / Serial SPN

SPARE PARTS SIMAG
models for flake ice machines

SP405 SP605 SPN405 SPN605 SPN1205

Prices in Euros excluding VAT - Tarif 2024/2025 - prices may be revised whithout notice - not including installation.

Spare parts original, below list of wear parts The most common, we can supply all other parts on request.

Define well when ordering the reference, the serial number and the gas used by your machine.

Ice production :

Num.	References	Photos	Designations	Prices € excluding VAT

07	ICF107	agrandir	Water level metal pin code 29070018 replace code 72421506 Thank you to specify the model and serial number of your machine they are indispensable	33	Model and serial Shipping out Metropolitan France. "click here". in stock or 48h
08	ICF108R	agrandir	Retrofit kit for nozzle water inlet in plastic code 06074200 replace code 79315300 Thank you to specify the model and serial number of your machine they are indispensable	114	Model and serial Shipping out Metropolitan France. "click here". in stock or 48h
12	ICF112	agrandir	Water reservoir ASSY code 79312601 or 66045900 Thank you to specify the model and serial number of your machine they are indispensable	207	Model and serial Shipping out Metropolitan France. "click here". in stock or 48h

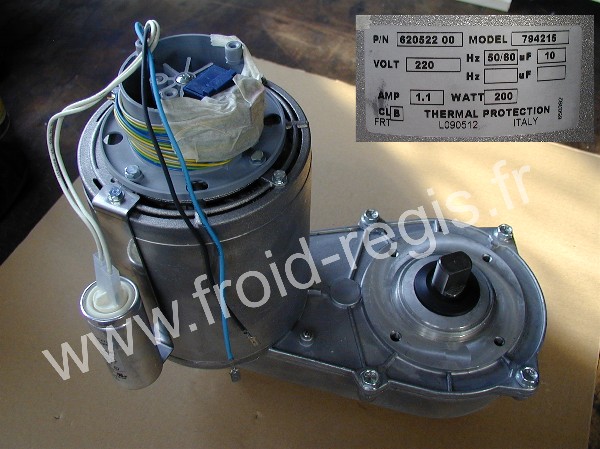

16	ICF116A	enlarge	NEW full gear motor for SF300-SF500-SFN1000 code 79434400R (replace le code 7942158R) Thank you to specify the model and serial number of your machine they are indispensable	2 624	Model and serial Shipping out Metropolitan France. "click here". in stock or 48h

Other parts price on request

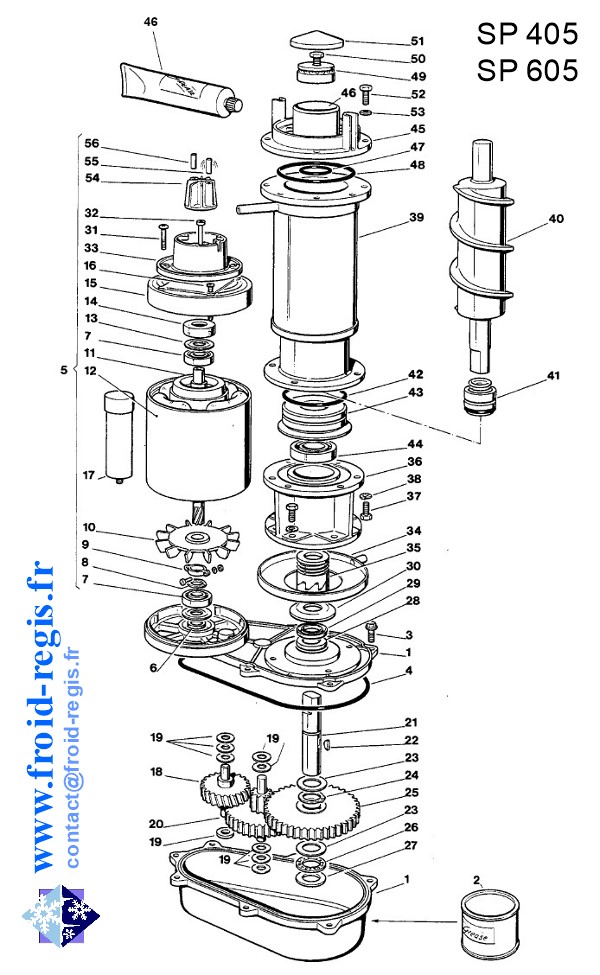

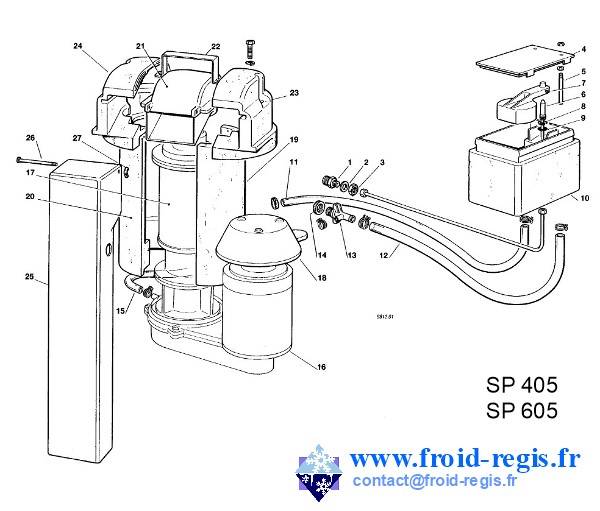

Reducer / Evaporator :

Num.	References	Photos	Designations	Prices € excluding VAT

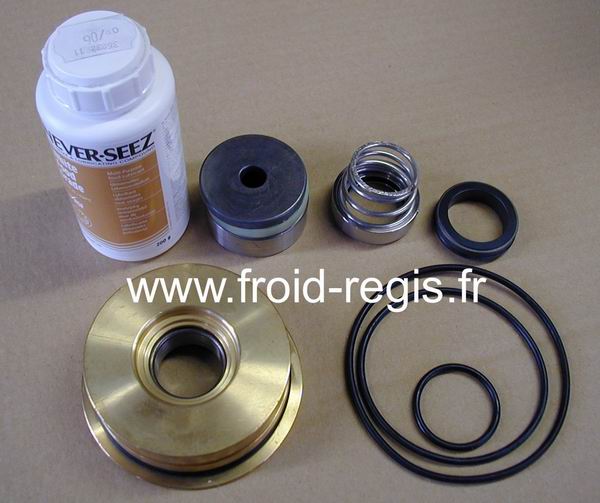

	ICF-KIT-SF	enlarge	Kit bearings, seals and grease for endless screw (to replace every 5 years) parts containing : 49, 48, 47, 43, 44, 42 et 56. (+ support 36 next n/s) Thank you to specify the model and serial number of your machine they are indispensable	1 399	Model and serial Shipping out Metropolitan France. "click here". in stock or 48h
49	ICF449	enlarge	Upper bearing with Bearings code 65105800 Thank you to specify the model and serial number of your machine they are indispensable	328	Model and serial Shipping out Metropolitan France. "click here". in stock or 48h

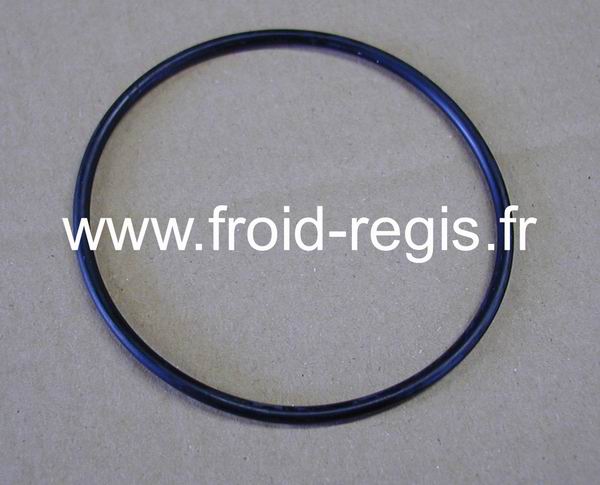

48	ICF448	enlarge	Large upper seal ring code 64009303 Thank you to specify the model and serial number of your machine they are indispensable	25	Model and serial Shipping out Metropolitan France. "click here". in stock or 48h
47	ICF447	enlarge	Small upper seal ring code 64009302 Thank you to specify the model and serial number of your machine they are indispensable	24	Model and serial Shipping out Metropolitan France. "click here". in stock or 48h

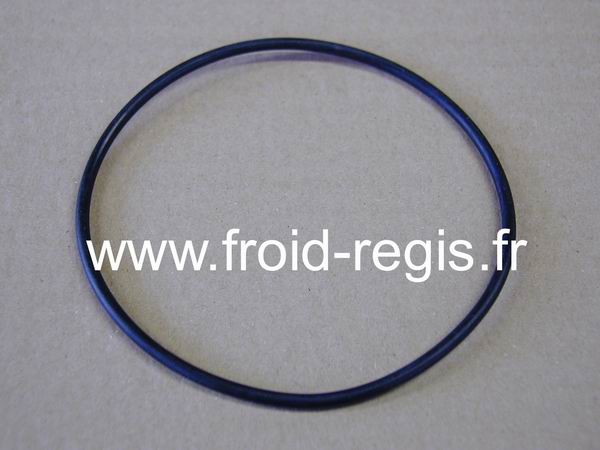

43	ICF443	enlarge	Lower TOR code 64009300 Thank you to specify the model and serial number of your machine they are indispensable	25	Model and serial Shipping out Metropolitan France. "click here". in stock or 48h
44	ICF444A	agrandir	Bearing carrier lower bearing and support - parts 44 + 36 code 06068800 Merci d'indiquer le modèle et le numéro de série de votre machine ils sont indispensables	782	Model and serial Shipping out Metropolitan France. "click here". in stock or 48h

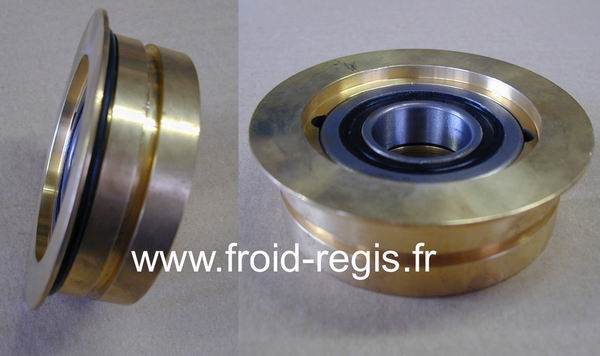

44	ICF444B	enlarge	Bearing carrier lower bearing code 06052701 Thank you to specify the model and serial number of your machine they are indispensable	911	Model and serial Shipping out Metropolitan France. "click here". in stock or 48h

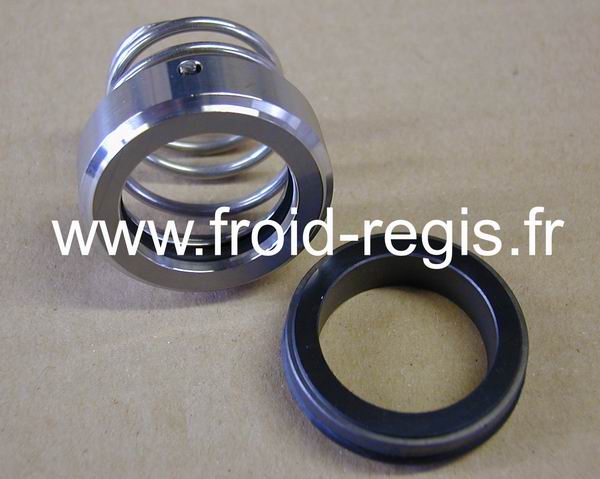

42	ICF442	enlarge	Water seal code 65040200 Thank you to specify the model and serial number of your machine they are indispensable	259	Model and serial Shipping out Metropolitan France. "click here". in stock or 48h
46	ICF456	enlarge	Grease code 26361200	59	Model and serial Shipping out Metropolitan France. "click here". in stock or 48h
41	ICF441SF300	enlarge	endless screw code 72419802 Thank you to specify the model and serial number of your machine they are indispensable	1 599	Model and serial Shipping out Metropolitan France. "click here". in stock or 48h
41	ICF441SF500	enlarge	endless screw code 72419803 Thank you to specify the model and serial number of your machine they are indispensable	1 676	Model and serial Shipping out Metropolitan France. "click here". in stock or 48h

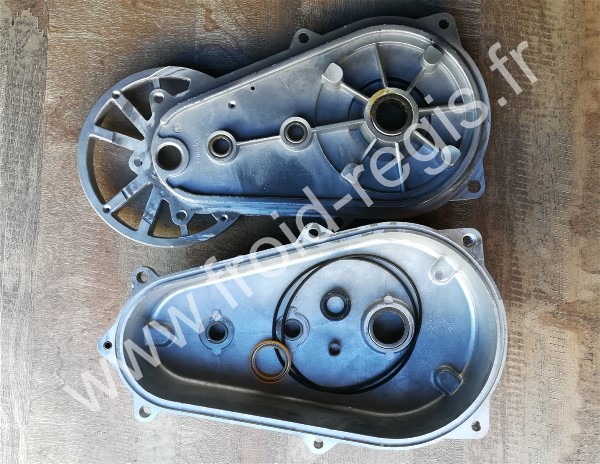

01	ICF401	enlarge	Case ASSY for gears SF code 0A3123001 Thank you to specify the model and serial number of your machine they are indispensable	-	not available

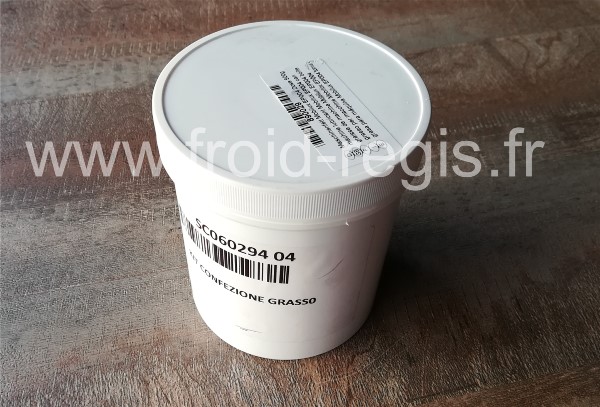

02	ICF402	enlarge	Grease 0,5 kg code 06029404 Thank you to specify the model and serial number of your machine they are indispensable	139	Model and serial Shipping out Metropolitan France. "click here". in stock or 48h
18	ICF418	enlarge	1St gear code 65115600 Thank you to specify the model and serial number of your machine they are indispensable	159	Model and serial Shipping out Metropolitan France. "click here". in stock or 48h

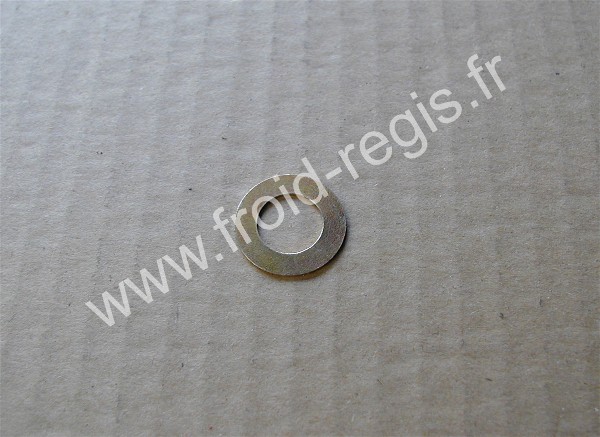

19	ICF419	enlarge	Trust washer ext.22 x int.13 ep.0,8 mm code 0300140824 Thank you to specify the model and serial number of your machine they are indispensable	28	Model and serial Shipping out Metropolitan France. "click here". in stock or 48h

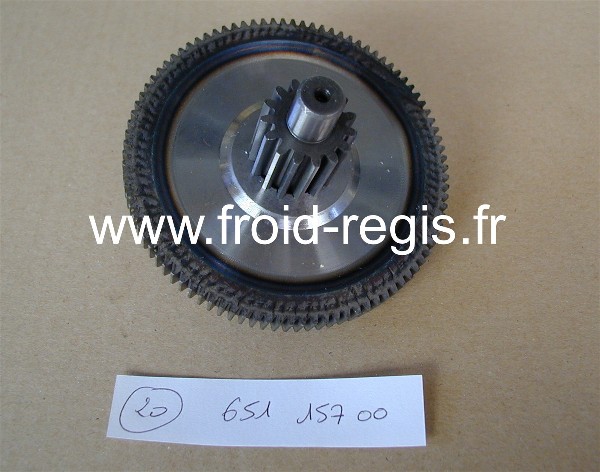

20	ICF420	enlarge	2nd gear code 65115700 Thank you to specify the model and serial number of your machine they are indispensable	189	Model and serial Shipping out Metropolitan France. "click here". in stock or 48h

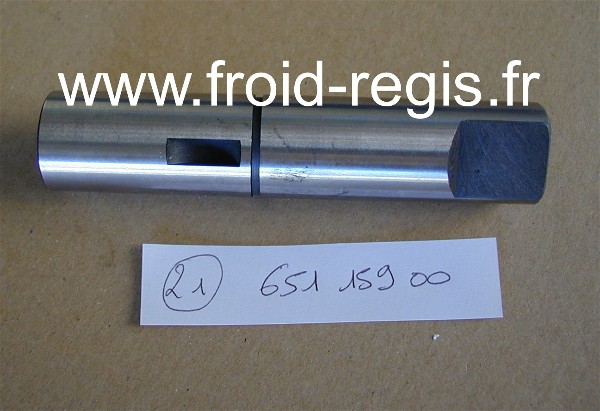

21	ICF421	enlarge	Shaft Thank you to specify the model and serial number of your machine they are indispensable	-	-

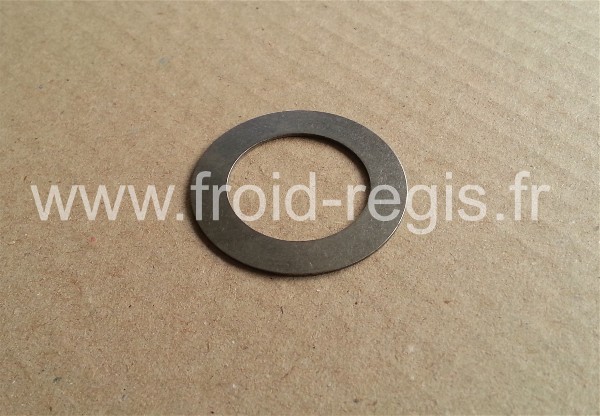

23	ICF423	enlarge	Trust washer ext.39 x int.25,6 ep.0,8 mm code 0200168100 Thank you to specify the model and serial number of your machine they are indispensable	33	Model and serial Shipping out Metropolitan France. "click here". in stock or 48h

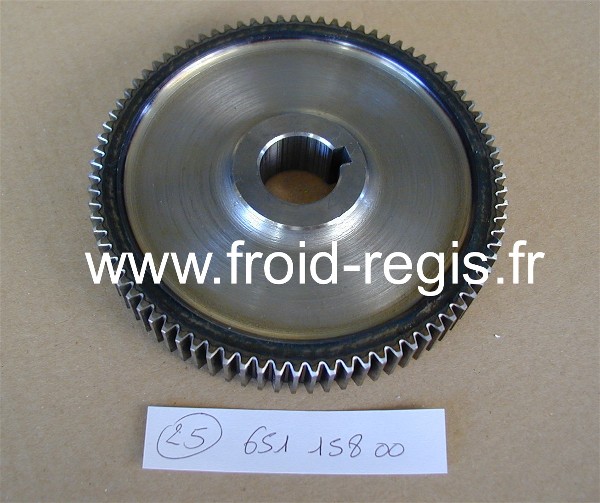

25	ICF425	enlarge	Output gear code 65115800 Thank you to specify the model and serial number of your machine they are indispensable	149	Model and serial Shipping out Metropolitan France. "click here". in stock or 48h

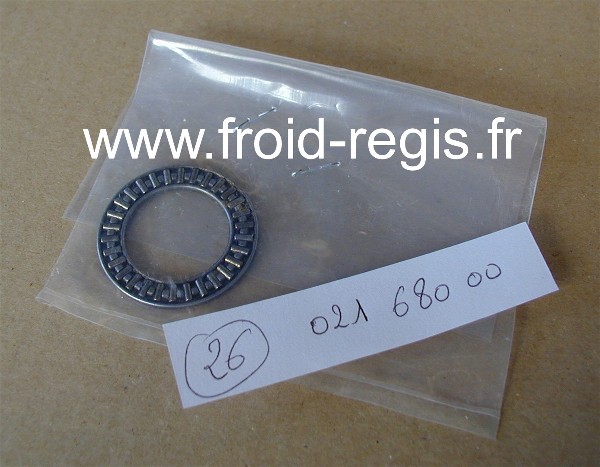

26	ICF426	enlarge	Trust bearing code 02168000 Thank you to specify the model and serial number of your machine they are indispensable	58	Model and serial Shipping out Metropolitan France. "click here". in stock or 48h

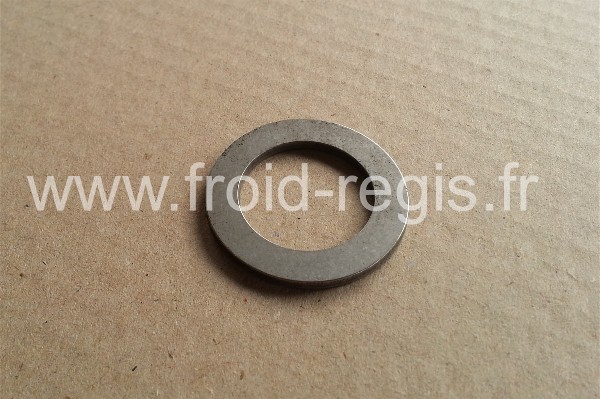

27	ICF427	enlarge	Trust washer ext.39 x int.25,6 ep.2,85 mm code 02167900 Thank you to specify the model and serial number of your machine they are indispensable	51	Model and serial Shipping out Metropolitan France. "click here". in stock or 48h

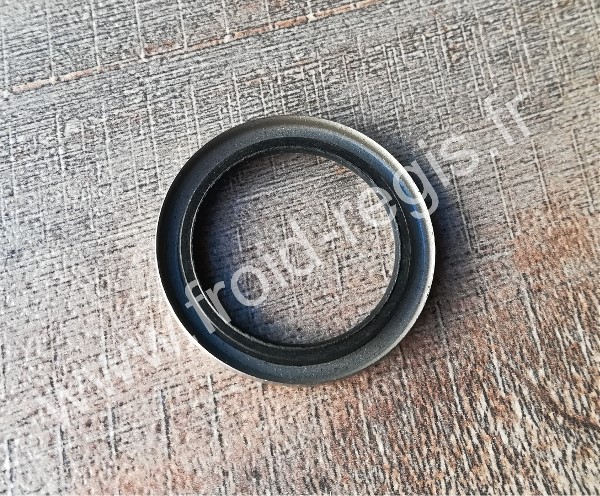

28	ICF428	enlarge	Oil seal ext.34 x int.25 ep.3 mm code 0200160701 Thank you to specify the model and serial number of your machine they are indispensable	84	Model and serial Shipping out Metropolitan France. "click here". in stock or 48h

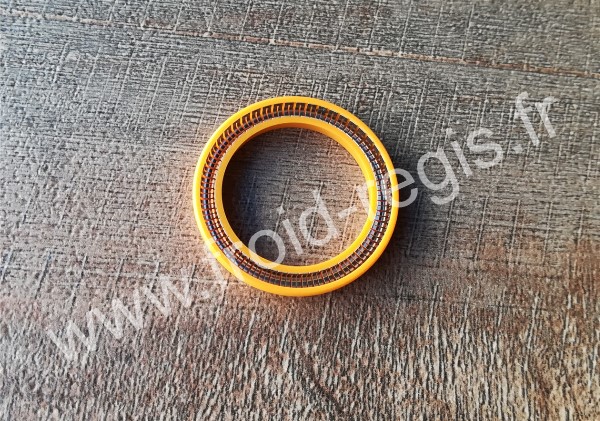

29	ICF429	enlarge	Oil seal ext.34 x int.25 ep.5 mm code 0200285301 Thank you to specify the model and serial number of your machine they are indispensable	175	Model and serial Shipping out Metropolitan France. "click here". in stock or 48h

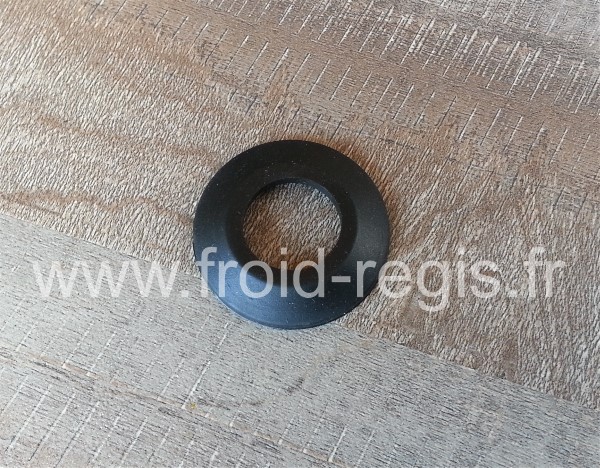

30	ICF430	enlarge	Rubber gasket ext.48 x int.23 ep.7 mm code 1300070902 Thank you to specify the model and serial number of your machine they are indispensable	33	Model and serial Shipping out Metropolitan France. "click here". in stock or 48h
35	ICF435	enlarge	Kit coupling code 06035901 Thank you to specify the model and serial number of your machine they are indispensable	149	Model and serial Shipping out Metropolitan France. "click here". in stock or 48h

Other parts price on request

Reducer / Evaporator NEW VERSION :

Num.	References	Photos	Designations	Prices € excluding VAT

	ICF-KIT-SFB	enlarge	Kit bearings, seals and grease for endless screw (to replace every 5 years) parts containing : 33, 34, 37, 39, 40, 43 et 46. Thank you to specify the model and serial number of your machine they are indispensable	1 399	Model and serial Shipping out Metropolitan France. "click here". in stock or 48h
43	ICF449	enlarge	Upper bearing with Bearings code 65105800 Thank you to specify the model and serial number of your machine they are indispensable	328	Model and serial Shipping out Metropolitan France. "click here". in stock or 48h
40	ICF448	enlarge	Large upper seal O Ring code 64009303 Thank you to specify the model and serial number of your machine they are indispensable	25	Model and serial Shipping out Metropolitan France. "click here". in stock or 48h
39	ICF447A	enlarge	Small upper seal X Ring code 64010900 Thank you to specify the model and serial number of your machine they are indispensable	29	Model and serial Shipping out Metropolitan France. "click here". in stock or 48h
33/34	ICF444B	enlarge	Bearing carrier lower bearing code 06052701 Thank you to specify the model and serial number of your machine they are indispensable	729	Model and serial Shipping out Metropolitan France. "click here". in stock or 48h
37	ICF442	enlarge	Water seal code 65040200 Thank you to specify the model and serial number of your machine they are indispensable	277	Model and serial Shipping out Metropolitan France. "click here". in stock or 48h
46	ICF456	enlarge	Nofreezing grease 100 ml - Food grade NSF H1 code 26361200 Technical data sheet Pdf	59	Model and serial Shipping out Metropolitan France. "click here". in stock or 48h
36	ICF441SF300	enlarge	endless screw code 72419802 Thank you to specify the model and serial number of your machine they are indispensable	1 599	Model and serial Shipping out Metropolitan France. "click here". in stock or 48h
36	ICF441SF500	enlarge	endless screw code 72419803 Thank you to specify the model and serial number of your machine they are indispensable	1 679	Model and serial Shipping out Metropolitan France. "click here". in stock or 48h

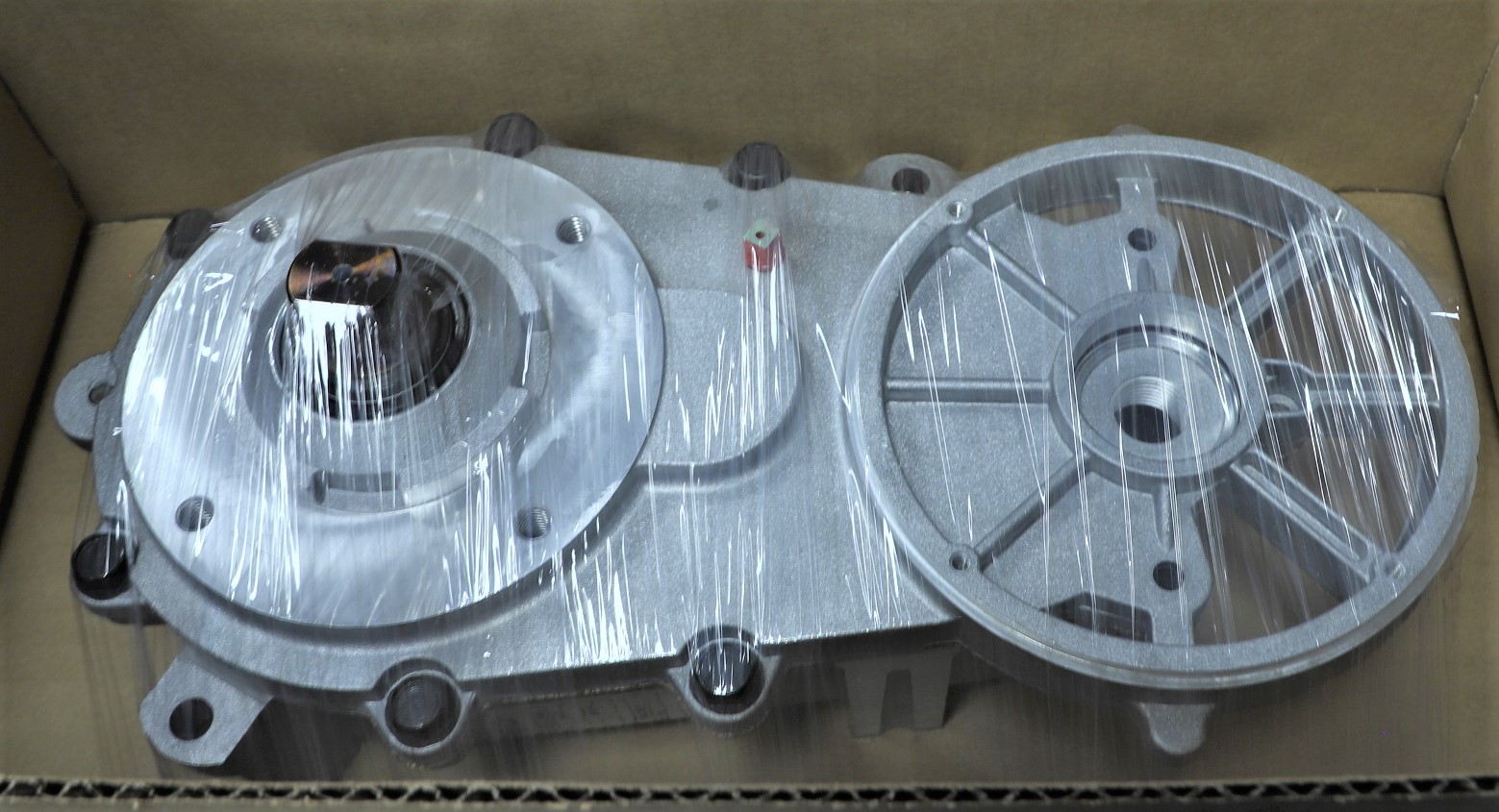

01/02	ICF401B	enlarge	Gear reducer ASSY MF without oil code 62059600	1 381	Model and serial Shipping out Metropolitan France. "click here". in stock or 10 days

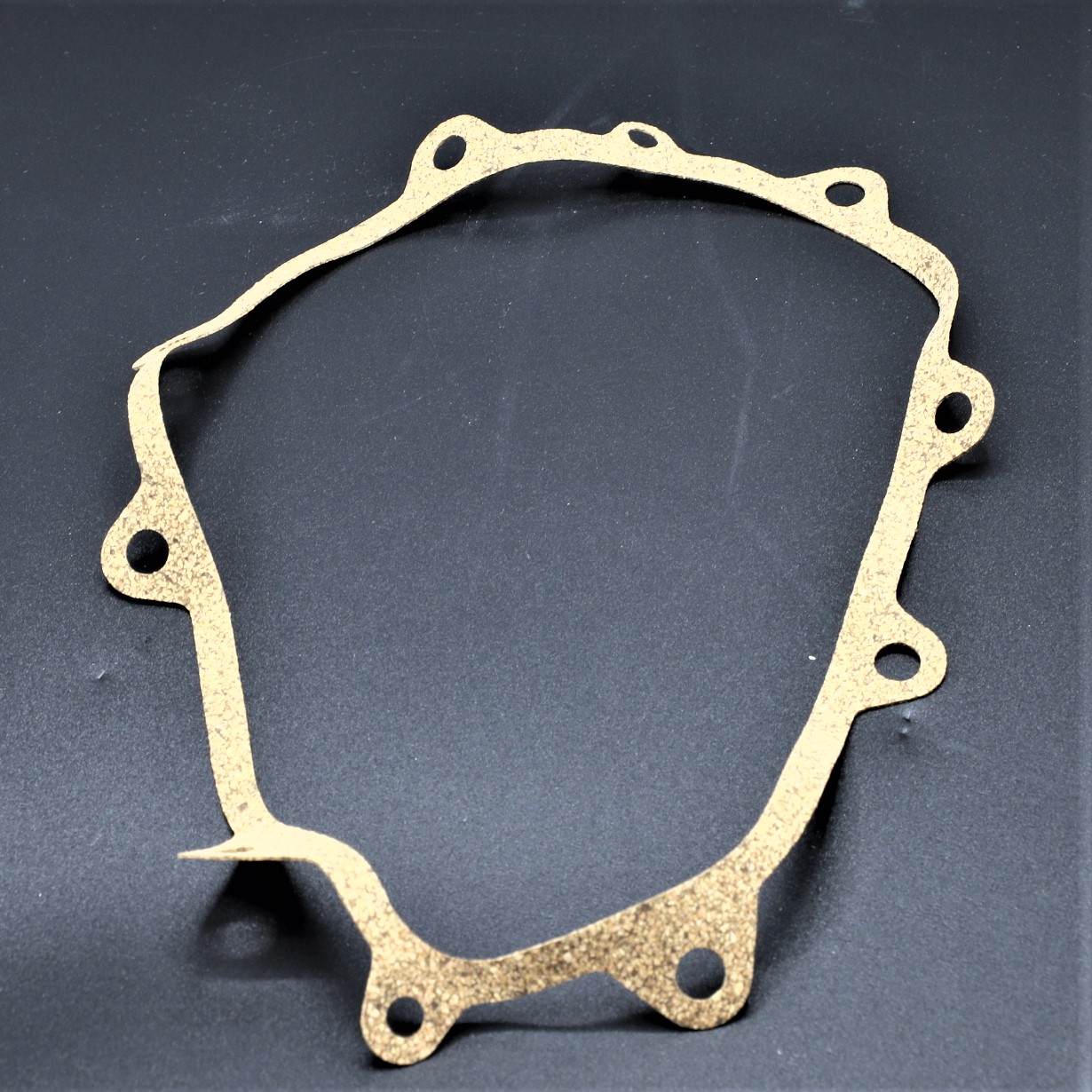

03	ICF403	enlarge	Gasket for gear reducer MF code 0A03237921	109	Model and serial Shipping out Metropolitan France. "click here". in stock or 10 days
07	ICF402B	enlarge	Oil reducer code 06029405 Thank you to specify the model and serial number of your machine they are indispensable	129	Model and serial Shipping out Metropolitan France. "click here". in stock or 48h

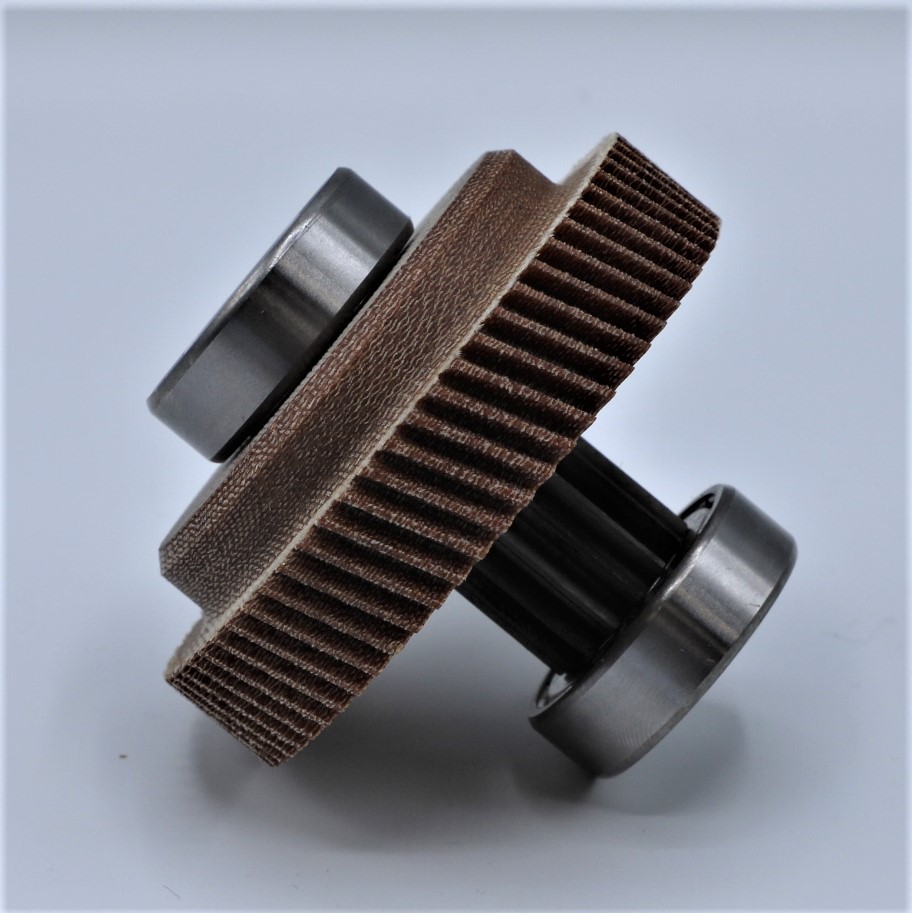

06	ICF418B	enlarge	1St gear with bearings code 0A03237924	889	Model and serial Shipping out Metropolitan France. "click here". in stock or 10 days

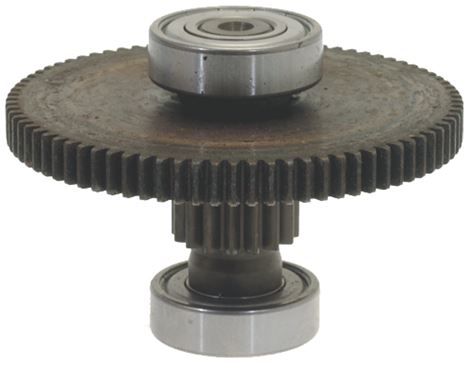

05	ICF420B	enlarge	2nd gear with bearings code 0A03237923	579	Model and serial Shipping out Metropolitan France. "click here". in stock or 10 days
24	ICF429B	enlarge	Oil seal ext.34 x int.25 ep.5 mm code 0A03237929	127	Model and serial Shipping out Metropolitan France. "click here". in stock or 10 days
25	ICF430	enlarge	Rubber gasket ext.48 x int.23 ep.7 mm code 1300070902 Thank you to specify the model and serial number of your machine they are indispensable	33	Model and serial Shipping out Metropolitan France. "click here". in stock or 48h
26	ICF435	enlarge	Kit coupling code 06035901 Thank you to specify the model and serial number of your machine they are indispensable	149	Model and serial Shipping out Metropolitan France. "click here". in stock or 48h

Other parts price on request

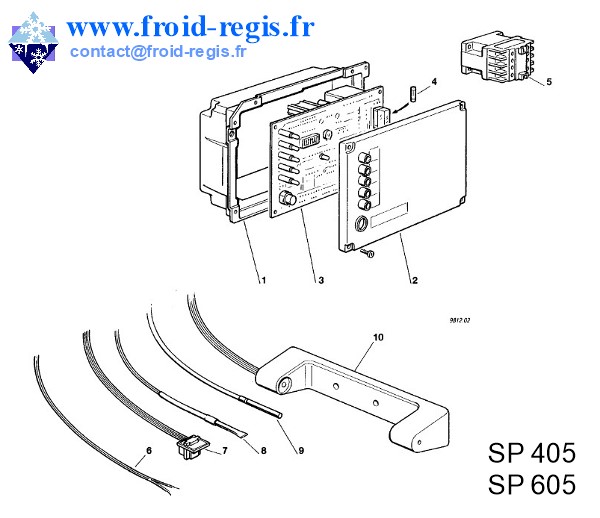

Control :

Num.	References	Photos	Designations	Prices € excluding VAT

3	ICF203B	enlarge	Kit electronic card ''NTC'' with probes condensor, evaporator water and adaptator ''NTC'' code 06071111 Thank you to specify the model and serial number of your machine they are indispensable	799	Model and serial Shipping out Metropolitan France. "click here". in stock or 48h
3	ICF203A	enlarge	Electronic card ''NTC'' - 2011 F80c-F125c code 81414543 F120-F200 code 62046215 Thank you to specify the model and serial number of your machine they are indispensable	432	Model and serial Shipping out Metropolitan France. "click here". in stock or 48h
6	ICF206	enlarge	Sensor cable water level for old card ''PTC'' code 62040413 Thank you to specify the model and serial number of your machine they are indispensable	34	Model and serial Shipping out Metropolitan France. "click here". in stock or 48h
6	ICF206A	enlarge	Sensor cable water level for new card ''NTC'' code 62051902 Thank you to specify the model and serial number of your machine they are indispensable	39	Model and serial Shipping out Metropolitan France. "click here". in stock or 48h
7	ICF207	enlarge	Rotation sensor hall effect sensor code 62040403 Thank you to specify the model and serial number of your machine they are indispensable	81	Model and serial Shipping out Metropolitan France. "click here". in stock or 48h
8	ICF208	enlarge	Condenser probe for old card ''PTC'' code 62040401 Thank you to specify the model and serial number of your machine they are indispensable	41	Model and serial Shipping out Metropolitan France. "click here". in stock or 48h
8	ICF208A	enlarge	Condenser probe for new card ''NTC'' code 62051904 Thank you to specify the model and serial number of your machine they are indispensable	46	Model and serial Shipping out Metropolitan France. "click here". in stock or 48h
9	ICF209	enlarge	evaporator probe for old card ''PTC'' code 62040410 Thank you to specify the model and serial number of your machine they are indispensable	49	Model and serial Shipping out Metropolitan France. "click here". in stock or 48h
9	ICF209A	enlarge	evaporator probe for new card ''NTC'' code 62051901 Thank you to specify the model and serial number of your machine they are indispensable	54	Model and serial Shipping out Metropolitan France. "click here". in stock or 48h
10	ICF210	enlarge	Ice level sensor Thank you to specify the model and serial number of your machine they are indispensable	144	Model and serial Shipping out Metropolitan France. "click here". in stock or 48h

Other parts price on request

Chiller air-cooled :

Num.	References	Photos	Designations	Prices € excluding VAT

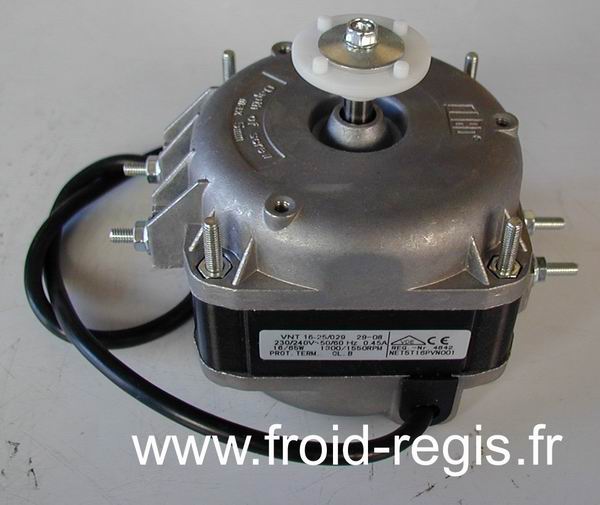

19	ICF519	enlarge	Fan motor 16W 220-230V/50-60Hz for MF46 code 62041904 Thank you to specify the model and serial number of your machine they are indispensable	156	Model and serial Shipping out Metropolitan France. "click here". in stock or 48h
19	ICF529	enlarge	Fan motor 220-230V/50-60Hz for MF56 code 62041907 Thank you to specify the model and serial number of your machine they are indispensable	246	Model and serial Shipping out Metropolitan France. "click here". in stock or 48h

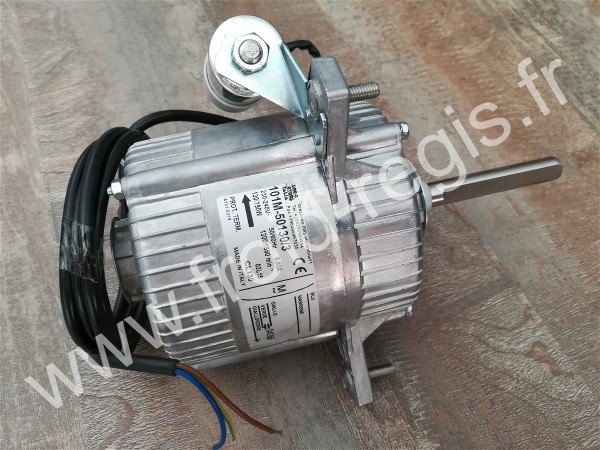

19	ICF539	enlarge	Fan motor 220-230V/50-60Hz for MF66 code 62027300 Thank you to specify the model and serial number of your machine they are indispensable	286	Model and serial Shipping out Metropolitan France. "click here". in stock or 48h

Other parts price on request

Chiller water-cooled :

Parts price on request

bodywork :

Parts price on request
