home / Spare parts / Flake ice machines / ICEMATIC / Serial B

SPARE PARTS ICEMATIC
models for ice machines
B305F - B505F - B1005F (R452A)
B305 - B505 - B1005 (R290)

Prices in Euros excluding VAT - Tarif 2024/2025 - prices may be revised whithout notice - not including installation.

Spare parts original, below list of wear parts The most common, we can supply all other parts on request.

Define well when ordering the reference, the serial number and the gas used by your machine.

Ice production :

Num.	References	Photos	Designations	Prices € excluding VAT

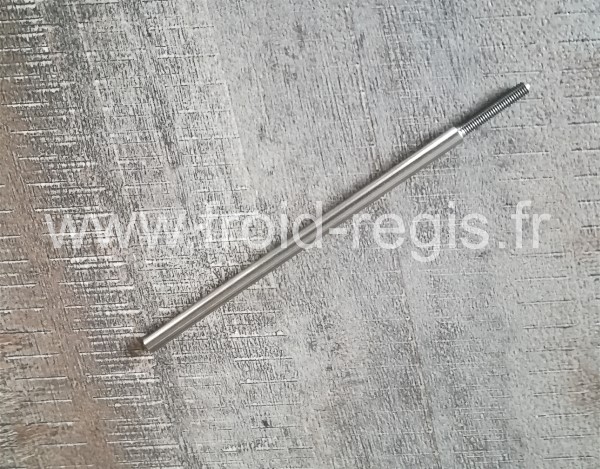

07	ICF107	agrandir	Water level metal pin code 29070018 Thank you to specify the model and serial number of your machine they are indispensable	33	Model and serial Shipping out Metropolitan France. "click here". in stock or 48h

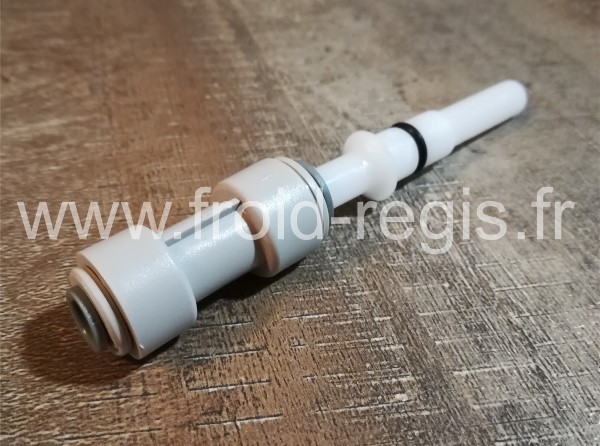

08	ICF108R	agrandir	Retrofit kit for nozzle water inlet in plastic code 06074200 replace code 79315300 Thank you to specify the model and serial number of your machine they are indispensable	114	Model and serial Shipping out Metropolitan France. "click here". in stock or 48h
12	ICF112	agrandir	Water reservoir ASSY code 79312601 Thank you to specify the model and serial number of your machine they are indispensable	207	Model and serial Shipping out Metropolitan France. "click here". in stock or 48h
16	ICF116A	enlarge	NEW full gear motor for B305-B505-B1005(F) code 79434400R (replace le code 7942158R) Thank you to specify the model and serial number of your machine they are indispensable	2 624	Model and serial Shipping out Metropolitan France. "click here". in stock or 48h

Other parts price on request

Reducer / Evaporator :

Num.	References	Photos	Designations	Prices € excluding VAT

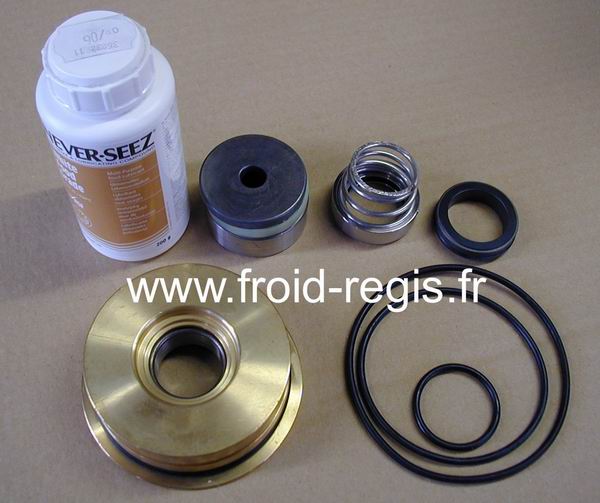

	ICF-KIT-SF	enlarge	Kit bearings, seals and grease for endless screw B305-B505-B1005(F) (to replace every 5 years) parts containing : 49, 48, 47, 43, 44, 42 et 56. (+ support 36 next n/s) Thank you to specify the model and serial number of your machine they are indispensable	1 399	Model and serial Shipping out Metropolitan France. "click here". in stock or 48h
49	ICF449	enlarge	Upper bearing with Bearings B305-B505-B1005(F) code 65105800 Thank you to specify the model and serial number of your machine they are indispensable	328	Model and serial Shipping out Metropolitan France. "click here". in stock or 48h

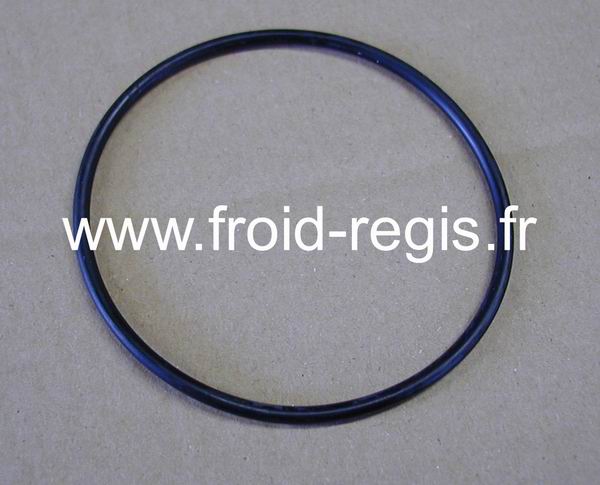

48	ICF448	enlarge	Large upper TOR B305-B505-B1005(F) code 64009303 Thank you to specify the model and serial number of your machine they are indispensable	25	Model and serial Shipping out Metropolitan France. "click here". in stock or 48h

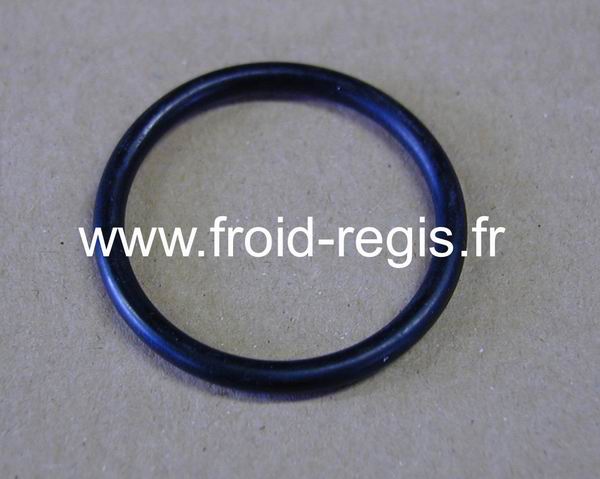

47	ICF447	enlarge	Small upper TOR B305-B505-B1005(F) code 64009302 Thank you to specify the model and serial number of your machine they are indispensable	24	Model and serial Shipping out Metropolitan France. "click here". in stock or 48h

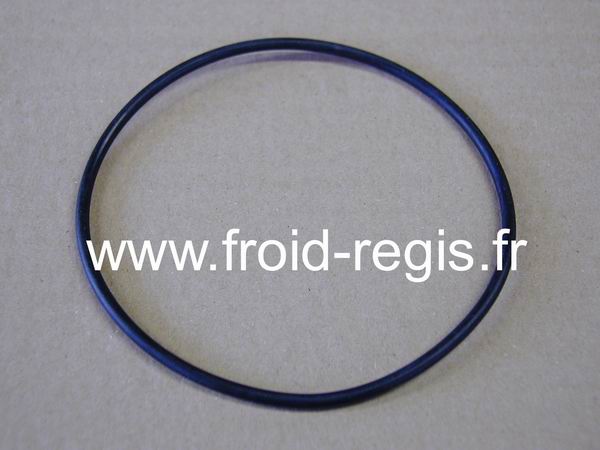

43	ICF443	enlarge	Lower TOR B305-B505-B1005(F) code 64009300 Thank you to specify the model and serial number of your machine they are indispensable	25	Model and serial Shipping out Metropolitan France. "click here". in stock or 48h

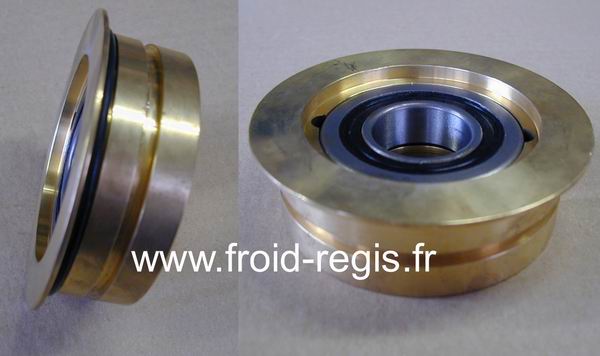

44	ICF444B	enlarge	Bearing carrier lower bearing B305-B505-B1005(F) code 06052701 Thank you to specify the model and serial number of your machine they are indispensable	782	Model and serial Shipping out Metropolitan France. "click here". in stock or 48h

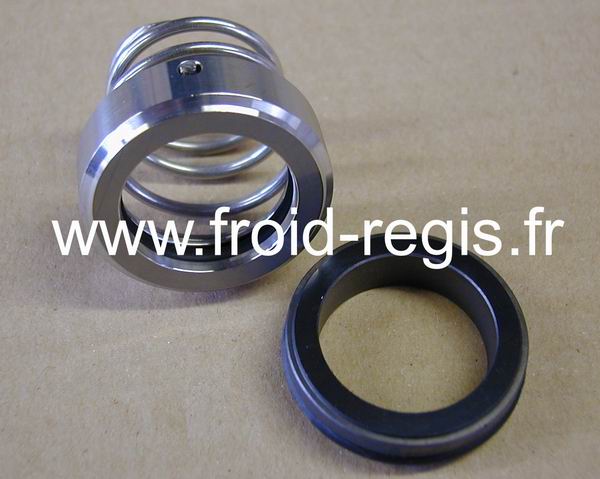

42	ICF442	enlarge	Water seal B305-B505-B1005(F) code 65040200 Thank you to specify the model and serial number of your machine they are indispensable	259	Model and serial Shipping out Metropolitan France. "click here". in stock or 48h
56	ICF456	enlarge	Nofreezing grease 100 ml - Food grade NSF H1 code 26361200 Technical data sheet Pdf	59	Shipping out Metropolitan France. "click here". in stock or 48h
41	ICF441SF300	enlarge	endless screw B305(F) code 72419802 Thank you to specify the model and serial number of your machine they are indispensable	1 599	Model and serial Shipping out Metropolitan France. "click here". in stock or 48h
41	ICF441SF500	enlarge	endless screw B505-B1005(F) code 72419803 Thank you to specify the model and serial number of your machine they are indispensable	1 676	Model and serial Shipping out Metropolitan France. "click here". in stock or 48h

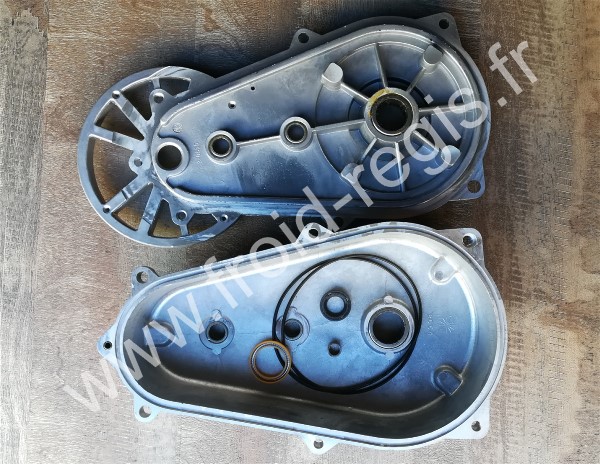

01	ICF401	enlarge	Case ASSY for gears SF code 0A3123001 Thank you to specify the model and serial number of your machine they are indispensable	-	not available
02	ICF402	enlarge	Grease 0,5 kg code 06029404 Thank you to specify the model and serial number of your machine they are indispensable	139	Model and serial Shipping out Metropolitan France. "click here". in stock or 48h
18	ICF418	enlarge	1St gear code 65115600 Thank you to specify the model and serial number of your machine they are indispensable	159	Model and serial Shipping out Metropolitan France. "click here". in stock or 48h

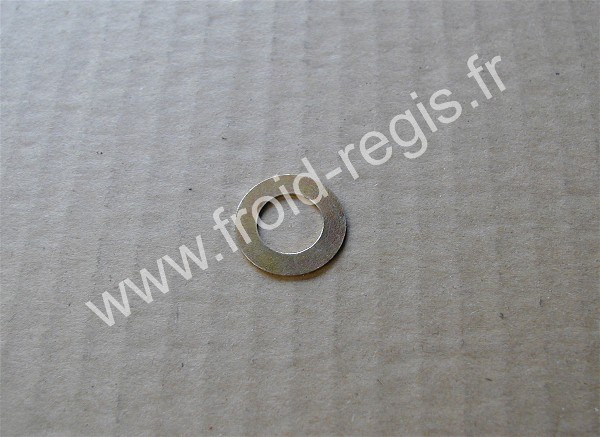

19	ICF419	enlarge	Trust washer ext.22 x int.13 ep.0,8 mm code 0300140824 Thank you to specify the model and serial number of your machine they are indispensable	28	Model and serial Shipping out Metropolitan France. "click here". in stock or 48h
20	ICF420	enlarge	2nd gear code 65115700 Thank you to specify the model and serial number of your machine they are indispensable	189	Model and serial Shipping out Metropolitan France. "click here". in stock or 48h

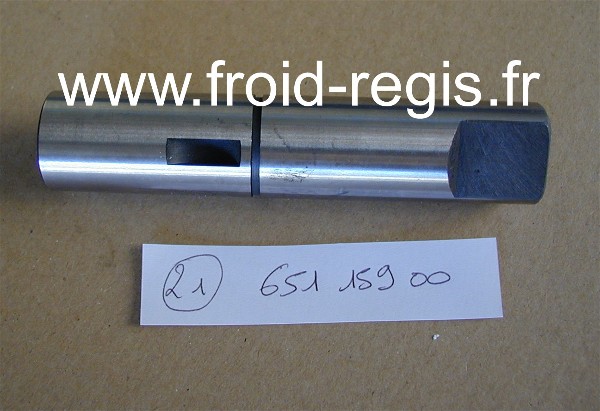

21	ICF421	enlarge	Shaft Thank you to specify the model and serial number of your machine they are indispensable	-	-

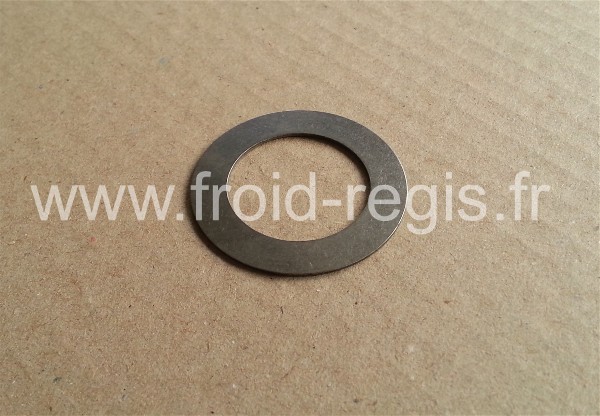

23	ICF423	enlarge	Trust washer ext.39 x int.25,6 ep.0,8 mm code 0200168100 Thank you to specify the model and serial number of your machine they are indispensable	33	Model and serial Shipping out Metropolitan France. "click here". in stock or 48h
25	ICF425	enlarge	Output gear code 65115800 Thank you to specify the model and serial number of your machine they are indispensable	149	Model and serial Shipping out Metropolitan France. "click here". in stock or 48h

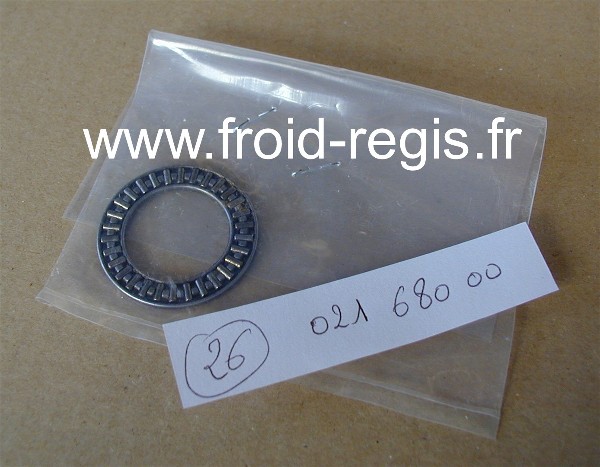

26	ICF426	enlarge	Trust bearing code 02168000 Thank you to specify the model and serial number of your machine they are indispensable	39	Model and serial Shipping out Metropolitan France. "click here". in stock or 48h

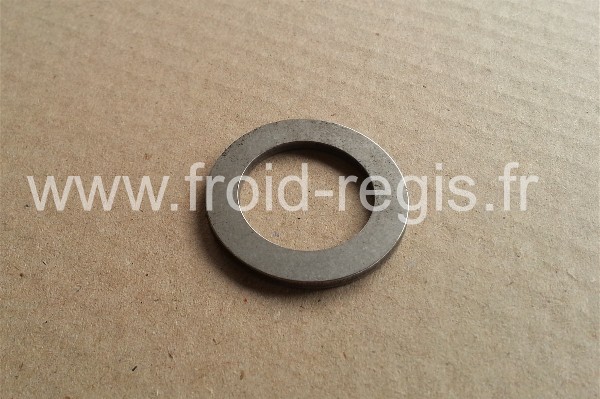

27	ICF427	enlarge	Trust washer ext.39 x int.25,6 ep.0,85 mm code 02167900 Thank you to specify the model and serial number of your machine they are indispensable	23	Model and serial Shipping out Metropolitan France. "click here". in stock or 48h

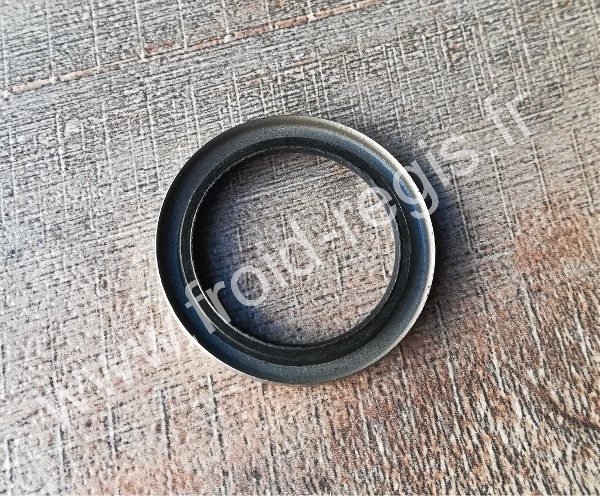

28	ICF428	enlarge	Oil seal ext.34 x int.25 ep.3 mm code 0200160701 Thank you to specify the model and serial number of your machine they are indispensable	84	Model and serial Shipping out Metropolitan France. "click here". in stock or 48h
29	ICF429	enlarge	Oil seal ext.34 x int.25 ep.5 mm code 0200285301 Thank you to specify the model and serial number of your machine they are indispensable	175	Model and serial Shipping out Metropolitan France. "click here". in stock or 48h

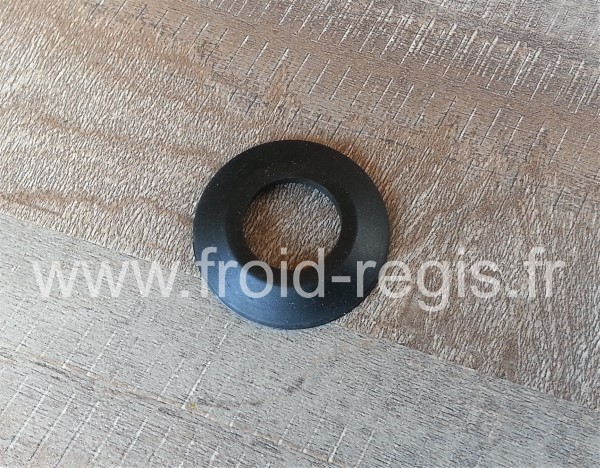

30	ICF430	enlarge	Rubber gasket ext.48 x int.23 ep.7 mm code 1300070902 Thank you to specify the model and serial number of your machine they are indispensable	33	Model and serial Shipping out Metropolitan France. "click here". in stock or 48h
35	ICF435	enlarge	Kit coupling code 06035901 Thank you to specify the model and serial number of your machine they are indispensable	149	Model and serial Shipping out Metropolitan France. "click here". in stock or 48h

Other parts price on request

Chiller air-cooled :

Num.	References	Photos	Designations	Prices € excluding VAT

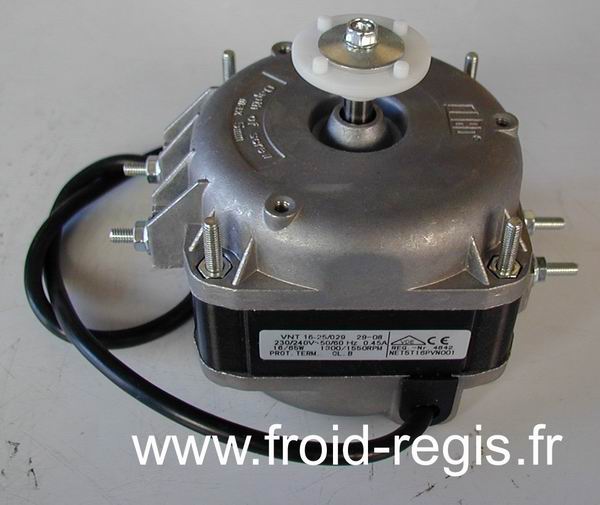

19	ICF519	enlarge	Fan motor 16W 220-230V/50-60Hz for B305(F) code 62041904 Thank you to specify the model and serial number of your machine they are indispensable	239	Model and serial Shipping out Metropolitan France. "click here". in stock or 48h
19	ICF529	enlarge	Fan motor 220-230V/50-60Hz for B505(F) code 62041907 Thank you to specify the model and serial number of your machine they are indispensable	246	Model and serial Shipping out Metropolitan France. "click here". in stock or 48h
19	ICF539	enlarge	Fan motor 220-230V/50-60Hz for B1005(F) code 62027300 Thank you to specify the model and serial number of your machine they are indispensable	362	Model and serial Shipping out Metropolitan France. "click here". in stock or 48h

Other parts price on request

Chiller water-cooled :

To view menu items Ice machine "all brands"

Control :

Num.	References	Photos	Designations	Prices € excluding VAT

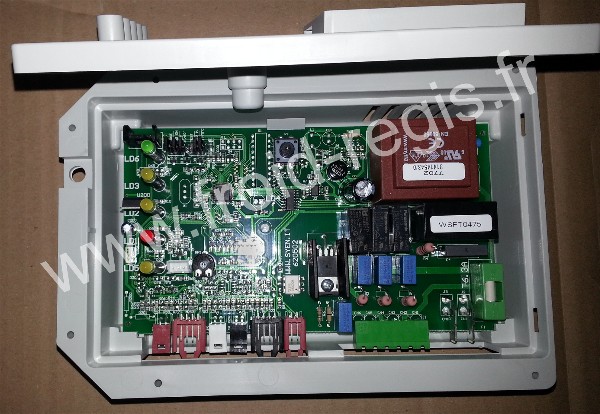

3	ICF203A	enlarge	Electronic card ''NTC'' - 2011 code 62046215 Thank you to specify the model and serial number of your machine they are indispensable	432	Model and serial Shipping out Metropolitan France. "click here". in stock or 48h

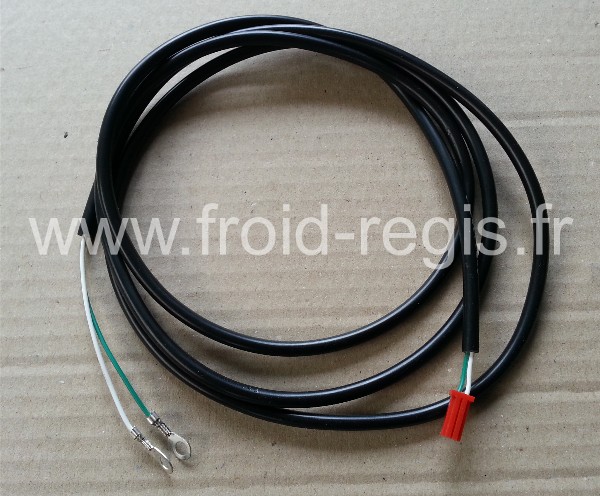

6	ICF206A	enlarge	Sensor cable water level for new card ''NTC'' code 62051902 Thank you to specify the model and serial number of your machine they are indispensable	39	Model and serial Shipping out Metropolitan France. "click here". in stock or 48h
7	ICF207	enlarge	Rotation sensor hall effect sensor code 62040403 Thank you to specify the model and serial number of your machine they are indispensable	81	Model and serial Shipping out Metropolitan France. "click here". in stock or 48h
8	ICF208A	enlarge	Condenser probe for new card ''NTC'' code 62051904 Thank you to specify the model and serial number of your machine they are indispensable	46	Model and serial Shipping out Metropolitan France. "click here". in stock or 48h

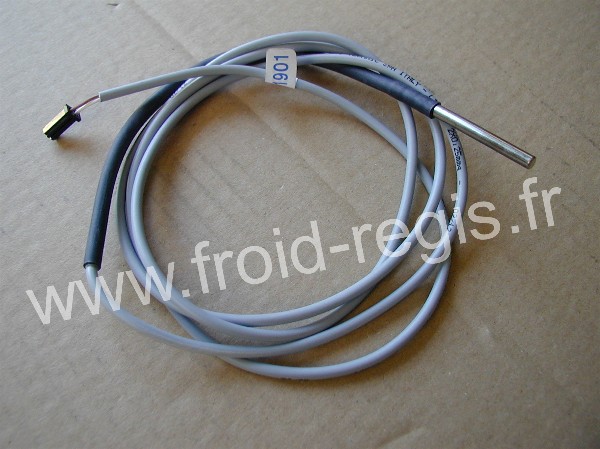

9	ICF209A	enlarge	evaporator probe for new card ''NTC'' code 62051901 Thank you to specify the model and serial number of your machine they are indispensable	54	Model and serial Shipping out Metropolitan France. "click here". in stock or 48h
10	ICF210	enlarge	Ice level sensor code 65067402 Thank you to specify the model and serial number of your machine they are indispensable	144	Model and serial Shipping out Metropolitan France. "click here". in stock or 48h

Other parts price on request

Body :

To come up

Well specify when ordering part number of your machine and the serial number.

Other parts price on request
