Accueil / Pièces détachées / Glaçons / SCOTSMAN / Série AC-7
SPARE PARTS SCOTSMAN
models for ice machines
AC127-177
Prices in Euros excluding VAT - Tarif 2024/2025 - prices may be revised whithout notice - not including installation.
Spare parts original, below list of wear parts The most common, we can supply all other parts on request.
Define well when ordering the reference, the serial number and the gas used by your machine.
Water circuit :
| Num. | References | Photos | Designations | Prices € excluding VAT |
|
|---|---|---|---|---|---|

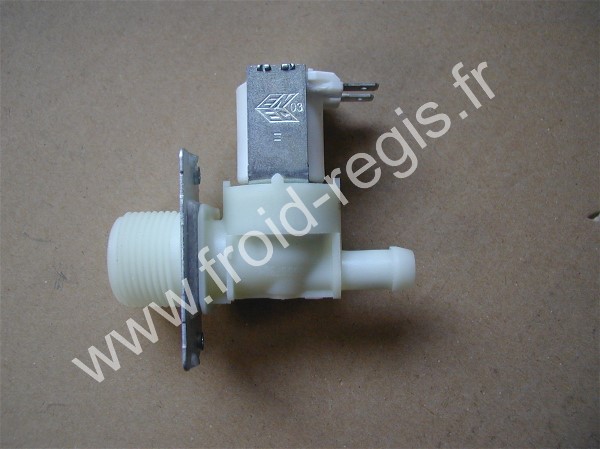

| 1 | SCO201 |
 enlarge |
Solenoid water inlet 230V/50-60Hz (for model air-cooled) code 65010552 Thank you to specify |
27 |
Shipping out  in stock |
| 6 | SCO-216A |
 enlarge |
Water pump ATEX - 230V-50Hz Ø outflow 18,5 mm / lg. axis 110 mm for AC127-177 code 62043010R Thank you to specify |
349 |
Shipping out in stock |
| 8 | SCO228 |  |
Diffusion ramp with grid AC/EC 127-177 left side (delivered without sprinklers) code 66108204 Thank you to specify |
88 |
Shipping out in stock or 10 days |
| 9 | SCO238 | |
Diffusion ramp with grid AC/EC 127-177 right side (delivered without sprinklers) code 66108203 Thank you to specify |
88 |
Shipping out in stock or 10 days |
| 10 | SCO210 |
 enlarge |
Water sprinkler (pack of 10) code 66055800 Thank you to specify |
59 |
Shipping out in stock |
| 16 17 18 |
SCO2678 |
 enlarge |
Drain connection bottom of tank - AC/EC Thank you to specify |
59 |
Shipping out in stock |
| 22 | SCO222 |
 enlarge |
Cleaning solenoid valve 230V/50-60Hz code 62046000 Thank you to specify |
49 |
Shipping out  in stock ou 48h |
Other parts price on request
Chiller air-cooled :
| Num. | References | Photos | Designations | Prices € excluding VAT |
|
|---|---|---|---|---|---|
| 13 | SCO513 |
 enlarge |
Coil for solenoid valve for hot gas Ø 14 mm 220-230V/50-60Hz |
36 |
Shipping out in stock |
| 08 | ICE545 |
 enlarge |

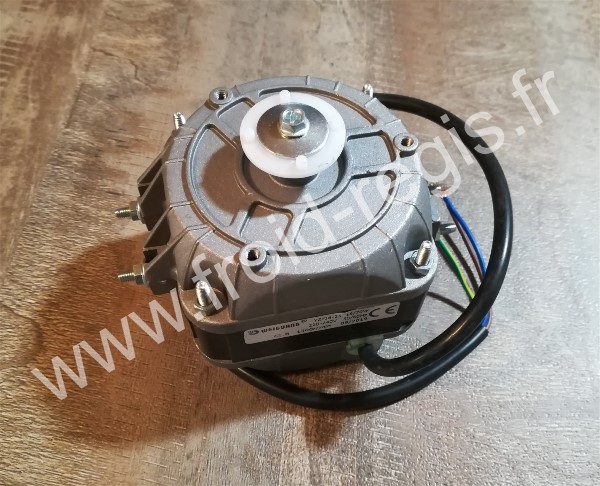

Fan motor 16 W 230-240V/50-60Hz |
39 |
Shipping out in stock |
| - | ICE537 |
 enlarge |
Water inlet hose lg. 2,5 m | 15 |
Shipping out in stock |
| - | ICE567 |
 enlarge |
Water drain hose Lg. 2 m | 11 |
Shipping out in stock |
| - | ICE577 |
 enlarge |
Hose clamp | 2 |
Shipping out in stock |
Other parts price on request
Control :
| Num. | References | Photos | Designations | Prices € excluding VAT |
|
|---|---|---|---|---|---|
| 3 | SCO-703C |
 enlarge |
NTC electronic card 230V/50-60Hz code 62046204 Thank you to specify |
412 |
Shipping out in stock ou 48h |
| 5 | SCO-706A |
 enlarge |
evaporator probe NTC code 62051901 Thank you to specify |
64 |
Shipping out in stock ou 48h |
| 6 | SCO-707A |
 enlarge |
condenser probe NTC code 62051904 Thank you to specify |
74 |
Shipping out in stock ou 48h |
| 7 | SCO-777 | |
Ice level sensor code 62056501 Thank you to specify |
126 |
Shipping out in stock ou 48h |
| 7 | SCO-718 |
 enlarge |
Ice level sensor IR Old version AC087-177 code 62067405 Thank you to specify |
106 |
Shipping out in stock ou 48h |
Other parts price on request

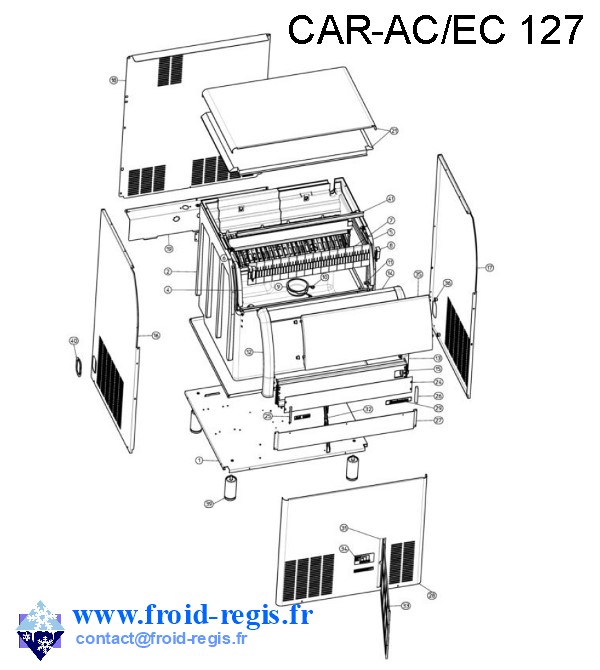

Body AC127-177:
| Num. | References | Photos | Designations | Prices € excluding VAT |
|
|---|---|---|---|---|---|
| 04 | SCO-104 |
 enlarge |
Left slide AC127-177 - code 66078401 Thank you to specify |
89 |
Shipping out in stock ou 48h |
| 05 | SCO-105 |
 enlarge |
Right slidee AC127-177 - code 66078400 Thank you to specify |
89 |
Shipping out in stock ou 48h |
| 06 08 |
SCO-168 |
 enlarge |
Pair of curtain bracket AC/EC087-107 code 66038800 et 66038801 |
- | on demand |

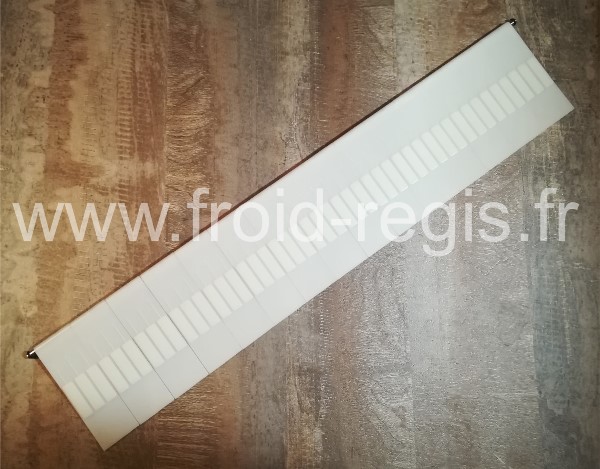

| 07 | SCO-107 |
 enlarge |
Curtain ASSY AC/EC |
- | on demand |

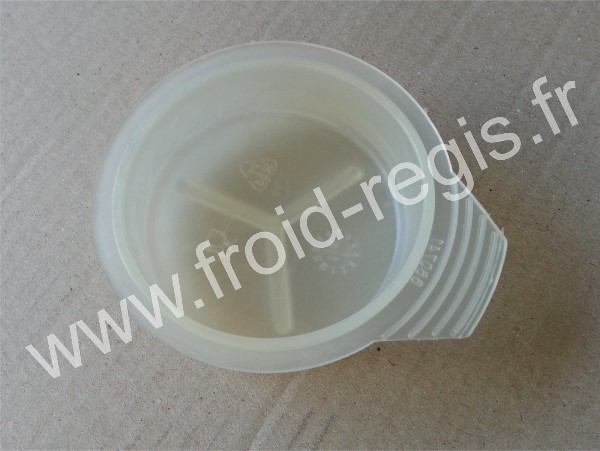

| 09 | SCO-109 |
 enlarge |
Plastic plug AC/EC code 66074100 |
- | on demand |

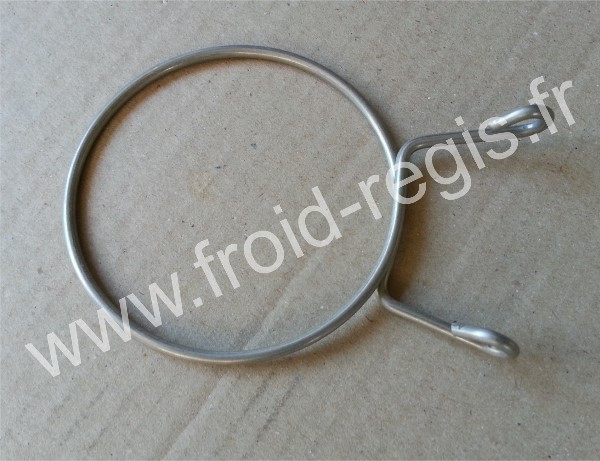

| 10 | SCO-110 |
 enlarge |
Spring AC/EC code 46004700 |
- | on demand |

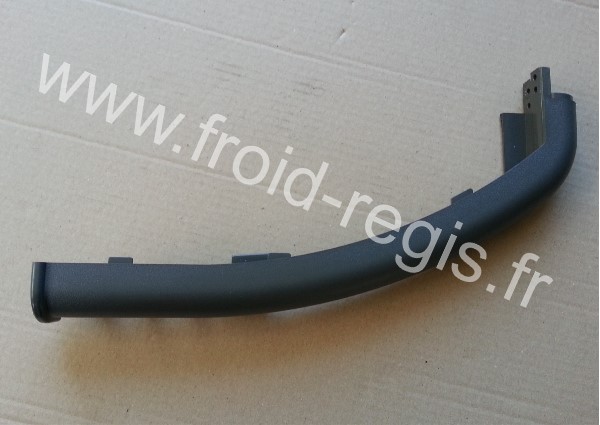

| 12 | SCO-112 |
 enlarge |
Left side door frame AC/EC code 66083200 |
- | on demand |
| 13 | SCO-113 |
 enlarge |
Rigth side door frame AC/EC code 66083201 |
- | on demand |
| 14 | SCO-114 |
 enlarge |
Upper door frame AC/EC |
- | on demand |
| - | ICE-605 |
 enlarge |
scoop for ice cubes | 12 |
Shipping out in stock ou 48h |
| 33 | SCO-133B |
 enlarge |
Air filter AC127-177 - code 66080502 Thank you to specify |
91 |
Shipping out in stock ou 48h |
| 35 | SCO-135B |
 enlarge |
Door AC127-177 - code 66078601 Thank you to specify |
213 |
Shipping out in stock ou 48h |
| 36 | SCO-136 |
 enlarge |
Sets of 4 rings code 66028600 Thank you to specify |
29 |
Shipping out in stock ou 48h |
Other parts price on request
