home / Spare parts / Ice machines / HOSHIZAKI / Serial IM_CLE-LE-ME

SPARE PARTS HOSHIZAKI
models for ice machines

IM21 CLE, IM25 CLE-WLE, IM30 CLE-WLE, IM45CLE-LE-WLE, IM65LE-WLE, IM100CLE-LE-WLE, IM130ME-WME, IM240AME-WAME-DSME-M2E

Prices in Euros excluding VAT - Tarif 2023/2024 - prices may be revised whithout notice - not including installation.

Spare parts original, below list of wear parts The most common, we can supply all other parts on request.

Define well when ordering the reference, the serial number and the gas used by your machine.

Num.	References	Photos	Designations	Prices € excluding VAT

01	HOS-C01	enlarge	Actuator motor for IM_CLE-LE-ME SR65A41-13 - 100v - 50/60Hz code 461907-01 Thank you to specify the model and serial number of your machine they are indispensable	337	Model and serial Shipping out Metropolitan France. "click here". in stock or 72h

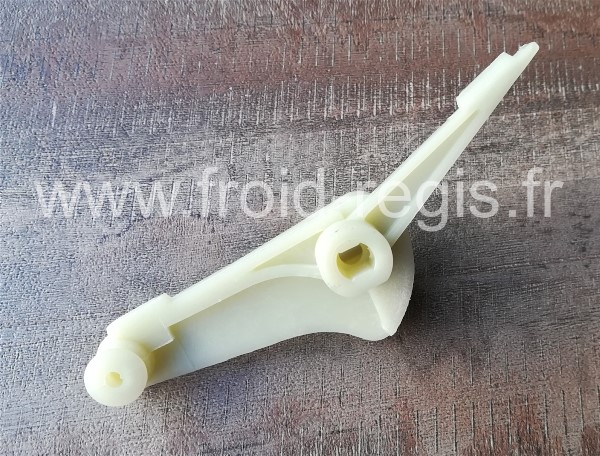

03	HOS-C03-10	Enlarge	Level CAM (A) for IM21-25-30_CLE code 3X8002-01 (supplied with pin) Thank you to specify the model and serial number of your machine they are indispensable	39	Model and serial Shipping out Metropolitan France. "click here". in stock or 72h

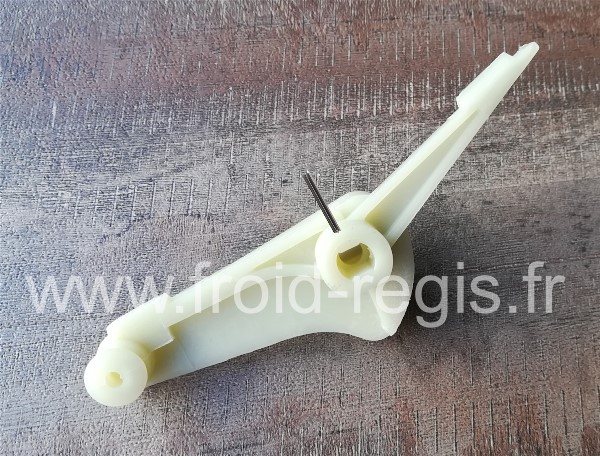

03	HOS-C03-15	Enlarge	Level CAM (A) for IM45-65_CLE-LE code 2H0659-01 (supplied with pin) Thank you to specify the model and serial number of your machine they are indispensable	51	Model and serial Shipping out Metropolitan France. "click here". in stock or 72h

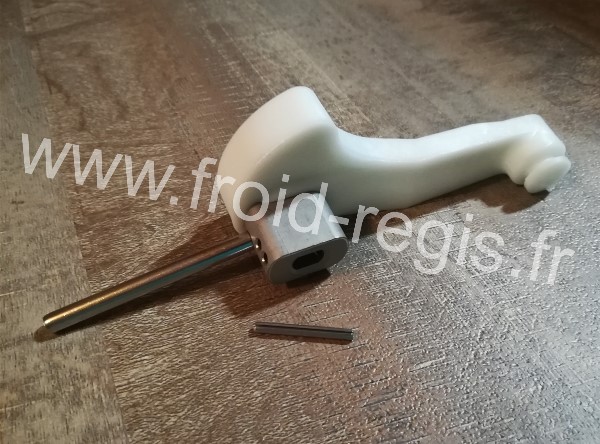

03	HOS-C03-20	Enlarge	Level CAM (A) for IM100-130_CLE-LE-ME code 306543G02 (supplied with pin and change lever) Thank you to specify the model and serial number of your machine they are indispensable	97	Model and serial Shipping out Metropolitan France. "click here". in stock or 72h
03	HOS-C03-25	Enlarge	Level CAM (A) for IM240_ME code 303881A02 (supplied with pin and change lever for DME_XME) Thank you to specify the model and serial number of your machine they are indispensable	98	Model and serial Shipping out Metropolitan France. "click here". in stock or 72h

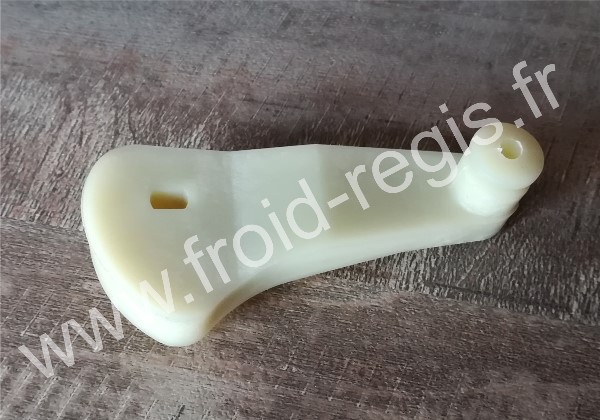

04	HOS-C04-15	enlarge	Level CAM (B) for IM45-65_CLE-LE code 3H1389-01 (supplied with pin) Thank you to specify the model and serial number of your machine they are indispensable	49	Model and serial Shipping out Metropolitan France. "click here". in stock or 72h
04	HOS-C04-20	enlarge	Level CAM (B) pour IM100-130-240_CLE-LE-ME code 315775-01 (supplied with pin) Thank you to specify the model and serial number of your machine they are indispensable	51	Model and serial Shipping out Metropolitan France. "click here". in stock or 72h
07	HOS-C07	enlarge	Toggle switch for IM_CLE-LE-ME code 431977-01 Thank you to specify the model and serial number of your machine they are indispensable	89	Model and serial Shipping out Metropolitan France. "click here". in stock or 72h

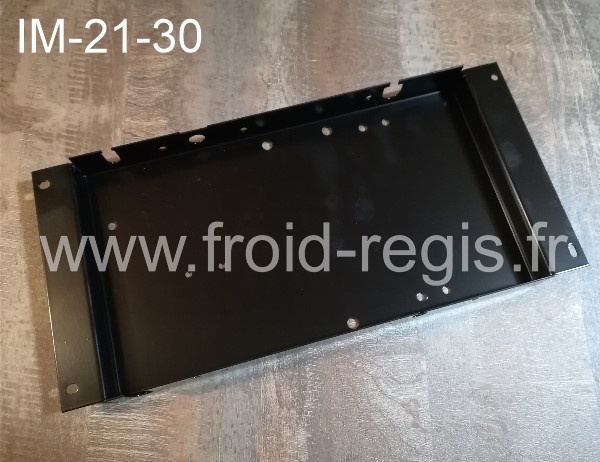

16	HOS-C16-10	enlarge	Bracket - icemaking mechanism for IM21-30_CLE Thank you to specify the model and serial number of your machine they are indispensable	64	Model and serial Shipping out Metropolitan France. "click here". in stock or 72h

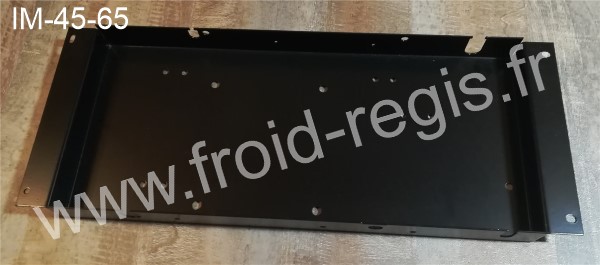

16	HOS-C16-20	enlarge	Bracket - icemaking mechanism for IM45-65_CLE-LE Thank you to specify the model and serial number of your machine they are indispensable	144	Model and serial Shipping out Metropolitan France. "click here". in stock or 72h

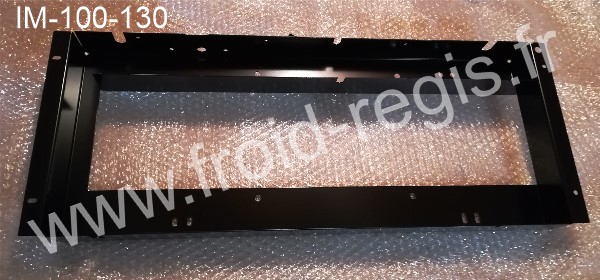

16	HOS-C16-30	enlarge	Bracket - icemaking mechanism for IM100-130_CLE-LE-ME exempt version (-21) on demand Thank you to specify the model and serial number of your machine they are indispensable	157	Model and serial Shipping out Metropolitan France. "click here". in stock or 72h
19	HOS-C19	enlarge	Pin CAM (A) pour IM code 712S-0328 Thank you to specify the model and serial number of your machine they are indispensable	10	Model and serial Shipping out Metropolitan France. "click here". in stock or 72h
21	HOS-C21	enlarge	Thermistor with thermal paste for IM_CLE-LE-ME code 4A0683-01 + 462976-03 Thank you to specify the model and serial number of your machine they are indispensable	115	Model and serial Shipping out Metropolitan France. "click here". in stock or 72h
22	HOS-C22	enlarge	Holder thermistor for IM code 3H9642-01 Thank you to specify the model and serial number of your machine they are indispensable	15	Model and serial Shipping out Metropolitan France. "click here". in stock or 72h

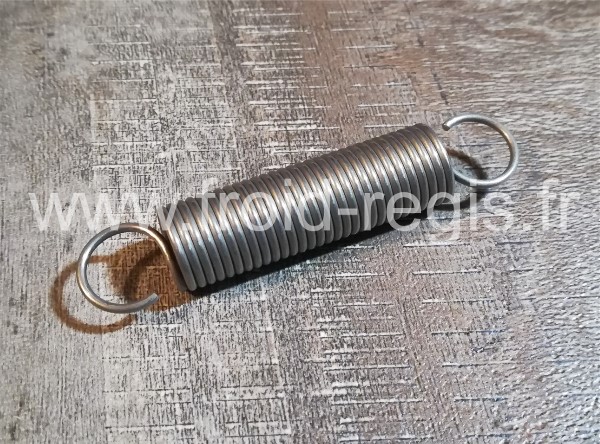

06	HOS-C06-10	enlarge	Spring for IM21-30_CLE-LE code 4H1143-01 Thank you to specify the model and serial number of your machine they are indispensable	44	Model and serial Shipping out Metropolitan France. "click here". in stock or 72h

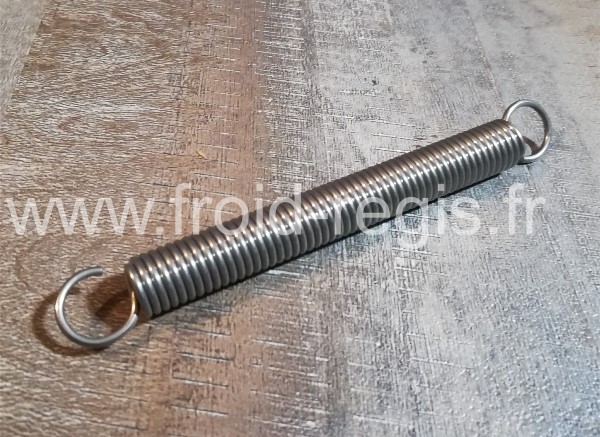

06	HOS-C06-15	enlarge	Spring for IM_CLE-LE IM45 code 4H2640-01 IM65 code 4H2590-01 IM100-130 code 4H0287-01 IM240 code 4H3473-01 Thank you to specify the model and serial number of your machine they are indispensable	65	Model and serial Shipping out Metropolitan France. "click here". in stock or 72h

Other parts price on request

Control :

Num.	References	Photos	Designations	Prices € excluding VAT

04	HOS-D04	enlarge	Controller board 100V/50-60Hz for IM_CLE-LE-ME New code R371A0517 Thank you to specify the model and serial number of your machine they are indispensable	487	Model and serial Shipping out Metropolitan France. "click here". in stock or 72h
13	HOS-D13A	enlarge	Transformer 220/100V for IM_CLE-LE-ME NEW code P03442-01 Thank you to specify the model and serial number of your machine they are indispensable	248	Model and serial Shipping out Metropolitan France. "click here". in stock or 72h
14	HOS-D14	enlarge	Power relay 100V/50-60Hz for IM_CLE-LE-ME code 449000-01 Thank you to specify the model and serial number of your machine they are indispensable	119	Model and serial Shipping out Metropolitan France. "click here". in stock or 72h

Other parts price on request

Water tank and pump :

Num.	References	Photos	Designations	Prices € excluding VAT

01	HOS-LN01A	enlarge	Water plate for IM21-30 Thank you to specify the model and serial number of your machine they are indispensable	167	Model and serial Shipping out Metropolitan France. "click here". in stock or 72h
01	HOS-LN01B		Water plate for IM45 Thank you to specify the model and serial number of your machine they are indispensable	211	Model and serial Shipping out Metropolitan France. "click here". in stock or 72h
01	HOS-LN01C	enlarge	Water plate for IM65 Thank you to specify the model and serial number of your machine they are indispensable	227	Model and serial Shipping out Metropolitan France. "click here". in stock or 72h
01	HOS-LN01D	enlarge	Water plate for IM100-130 exempt version (-21) on demand Thank you to specify the model and serial number of your machine they are indispensable	267	Model and serial Shipping out Metropolitan France. "click here". in stock or 72h
01	HOS-LN01E		Water plate for IM240 exempt version (-21)(-32) on demand Thank you to specify the model and serial number of your machine they are indispensable	391	Model and serial Shipping out Metropolitan France. "click here". in stock or 72h
02	HOS-LN02	enlarge	Water pan Thank you to specify the model and serial number of your machine they are indispensable	-	Model and serial Shipping out Metropolitan France. "click here". on demand
11	HOS-K11-10	enlarge	Pump 100V/50-60Hz for IM21-25-30-45_CLE-LE code 3X9635A01 Thank you to specify the model and serial number of your machine they are indispensable	397	Model and serial Shipping out Metropolitan France. "click here". in stock or 72h

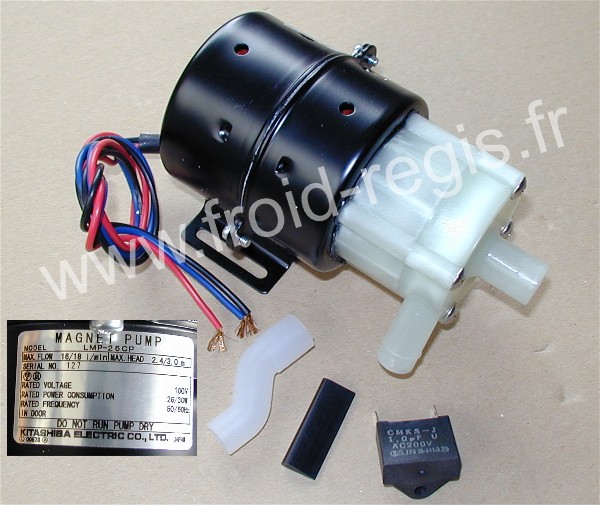

11	HOS-K11-15	enlarge	Pump for IM65LE 100V/50-60Hz code SP65HE-01 Thank you to specify the model and serial number of your machine they are indispensable	391	Model and serial Shipping out Metropolitan France. "click here". in stock or 72h

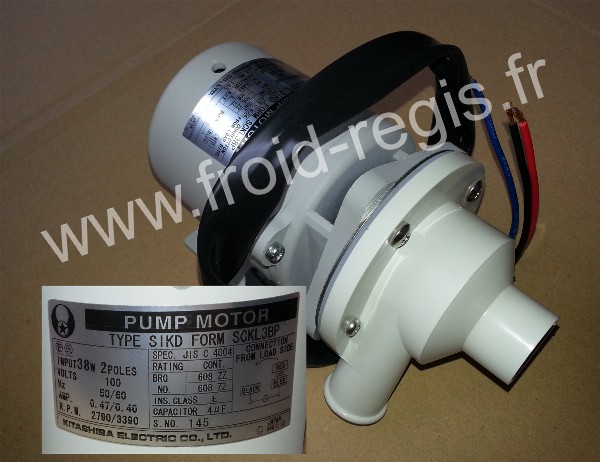

11	HOS-K11-20	enlarge	Pump 100V/50-60Hz for IM100-130-240_CLE-LE-ME code 316043A08 Thank you to specify the model and serial number of your machine they are indispensable	435	Model and serial Shipping out Metropolitan France. "click here". in stock or 72h
05	HOS-K05	enlarge	Braket pump for IM_CLE_LE_ME Thank you to specify the model and serial number of your machine they are indispensable	56	Model and serial Shipping out Metropolitan France. "click here". in stock or 72h
07	HOS-K07	enlarge	Screw spring hook for IM code 4H2581G01 Thank you to specify the model and serial number of your machine they are indispensable	32	Model and serial Shipping out Metropolitan France. "click here". in stock or 72h
08+09	HOS-K89-10	enlarge	Suction and discharge tubing water pump for IM21-25-30-45-65_CLE_LE code 4H1922-02 + 4H1982-01 Thank you to specify the model and serial number of your machine they are indispensable	59	Model and serial Shipping out Metropolitan France. "click here". in stock or 72h
08+09	HOS-K89-15	enlarge	Suction and discharge tubing water pump for IM100-130-240_CLE_LE_ME code 425437-01 + 425436-01 Thank you to specify the model and serial number of your machine they are indispensable	61	Model and serial Shipping out Metropolitan France. "click here". in stock or 72h

Other parts price on request

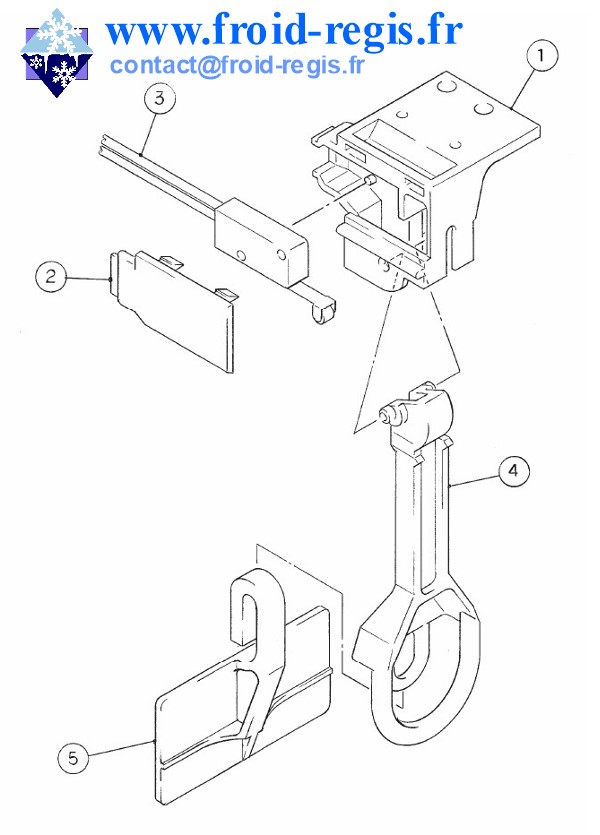

storage :

Num.	References	Photos	Designations	Prices € excluding VAT

03	HOS-J03	enlarge	Assy microswitch for IM21-30CLE code 3H1536A07 for IM45CLE code 3H1537A10 for IM45-65LE code 3H1537A09 for IM100-130-240_CLE_LE_ME code 3H1538A06 Thank you to specify the model and serial number of your machine they are indispensable	134	Model and serial Shipping out Metropolitan France. "click here". in stock or 72h
03	HOS-J03-30	enlarge	Assy microswitch pour IM240AME code 316220A04 Thank you to specify the model and serial number of your machine they are indispensable	287	Model and serial Shipping out Metropolitan France. "click here". in stock or 72h

Other parts price on request

Chiller air-cooled :

Num.	References	Photos	Designations	Prices € excluding VAT

11	HOS-B11-10	-	Hot gaz solenoid valve 100V/50-60Hz for IM21-30-45-65_CLE_LE code 418866-02 Thank you to specify the model and serial number of your machine they are indispensable	105	Model and serial Shipping out Metropolitan France. "click here". in stock or 72h
11	HOS-B11-15	-	Hot gaz solenoid valve 100V/50-60Hz for IM100-130-240_CLE_LE_ME code 418836-02 Thank you to specify the model and serial number of your machine they are indispensable	117	Model and serial Shipping out Metropolitan France. "click here". in stock or 72h
H	HOS-H01-10	enlarge	Fan motor 100V/50-60Hz for IM21-25-30_CLE_LE code 451765-01 Thank you to specify the model and serial number of your machine they are indispensable	121	Model and serial Shipping out Metropolitan France. "click here". in stock or 72h

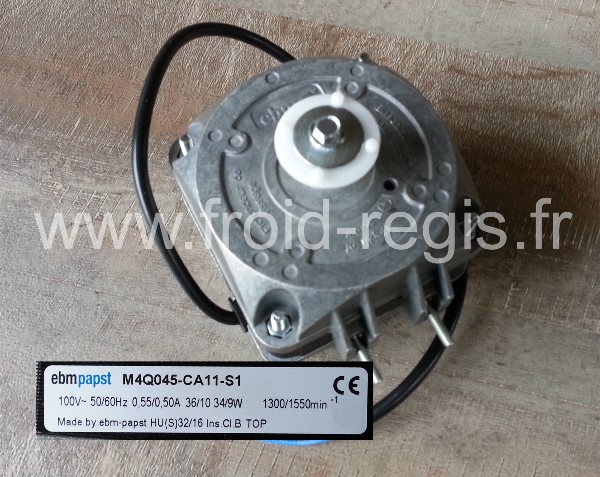

H	HOS-H01-15	enlarge	Fan motor 100V/50-60Hz for IM45-65-100-130_CLE_LE code 451766-01 Thank you to specify the model and serial number of your machine they are indispensable	137	Model and serial Shipping out Metropolitan France. "click here". in stock or 72h
H	HOS-H01-20	enlarge	Fan motor 100V/50-60Hz for IM240_ME code 453036-02 Thank you to specify the model and serial number of your machine they are indispensable	356	Model and serial Shipping out Metropolitan France. "click here". in stock or 72h

Other parts price on request

Chiller water-cooled :

Num.	References	Photos	Designations	Prices € excluding VAT

11	HOS-B11-10	-	Hot gaz solenoid valve 100V/50-60Hz for IM21-30-45-65_CLE_LE code 418866-02 Thank you to specify the model and serial number of your machine they are indispensable	105	Model and serial Shipping out Metropolitan France. "click here". in stock or 72h
11	HOS-B11-15	-	Hot gaz solenoid valve 100V/50-60Hz for IM100-130-240_CLE_LE_ME code 418836-02 Thank you to specify the model and serial number of your machine they are indispensable	117	Model and serial Shipping out Metropolitan France. "click here". in stock or 72h

Other parts price on request

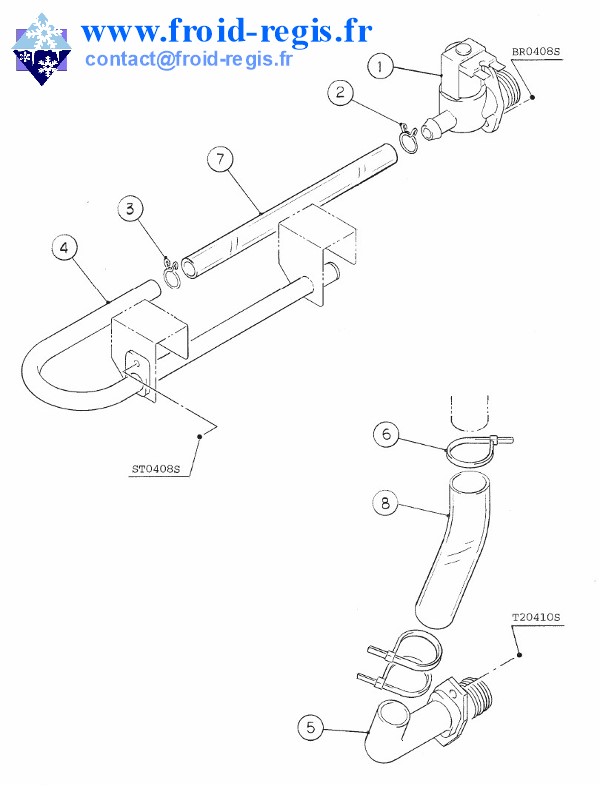

Water circuit :

Num.	References	Photos	Designations	Prices € excluding VAT

01	HOS-F01	enlarge	Water valve 100V/50-60Hz for IM21-30_CLE code P05360-01 for IM65LE code 452139-01 for IM45-100-130-240_CLE_LE_ME code P05361-01 Thank you to specify the model and serial number of your machine they are indispensable	51	Model and serial Shipping out Metropolitan France. "click here". in stock or 72h
04	HOS-F04-10	enlarge	Water supply pipe for IM21-30_CLE code 3H9529G01 Thank you to specify the model and serial number of your machine they are indispensable	67	Model and serial Shipping out Metropolitan France. "click here". in stock or 72h
04	HOS-F04-15	enlarge	Water supply pipe for IM45-65_CLE-LE code 3H9530G01 Thank you to specify the model and serial number of your machine they are indispensable	79	Model and serial Shipping out Metropolitan France. "click here". in stock or 72h
04	HOS-F04-20	enlarge	Water supply pipe for IM100-130_CLE-LE code 3H9532G01 Thank you to specify the model and serial number of your machine they are indispensable	82	Model and serial Shipping out Metropolitan France. "click here". in stock or 72h
04	HOS-F04-25	enlarge	Water supply pipe for IM240_ME code 3H9533G01 Thank you to specify the model and serial number of your machine they are indispensable	97	Model and serial Shipping out Metropolitan France. "click here". in stock or 72h
07	HOS-F07	enlarge	Silicone hose diam. 12x15 lg. according to model Thank you to specify the model and serial number of your machine they are indispensable	35	Model and serial Shipping out Metropolitan France. "click here". in stock or 72h
07	HOS-F07B	enlarge	Silicone hose diam. 12x15 lg. according to model + Clamp rep. 4 et 5 Thank you to specify the model and serial number of your machine they are indispensable	45	Model and serial Shipping out Metropolitan France. "click here". in stock or 72h

Other parts price on request

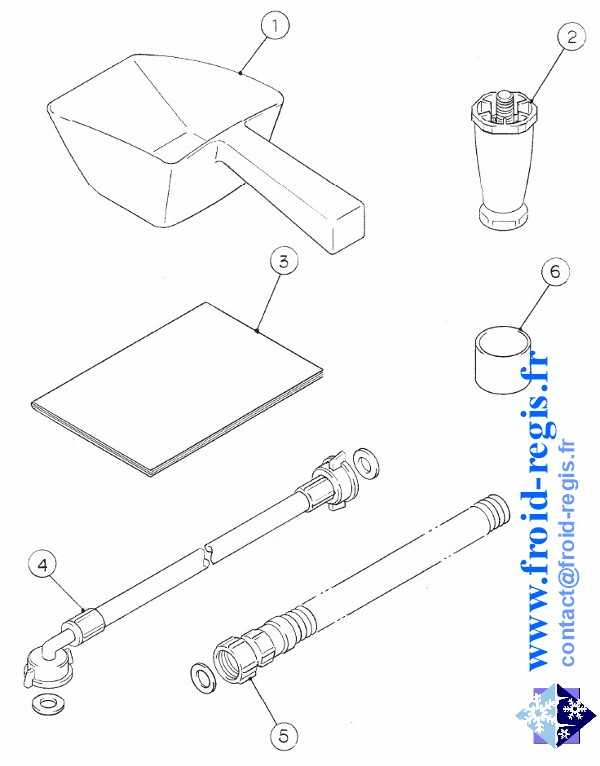

Accessories :

Num.	References	Photos	Designations	Prices € excluding VAT

04	HOS-L04	-	Inlet hose for IM code P03531-01 Thank you to specify the model and serial number of your machine they are indispensable	41	Model and serial Shipping out Metropolitan France. "click here". in stock or 72h
05	HOS-L05	enlarge	Outlet hose for IM code 452365-01 Thank you to specify the model and serial number of your machine they are indispensable	54	Model and serial Shipping out Metropolitan France. "click here". in stock or 72h

Other parts price on request

Body :

Num.	References	Photos	Designations	Prices € excluding VAT

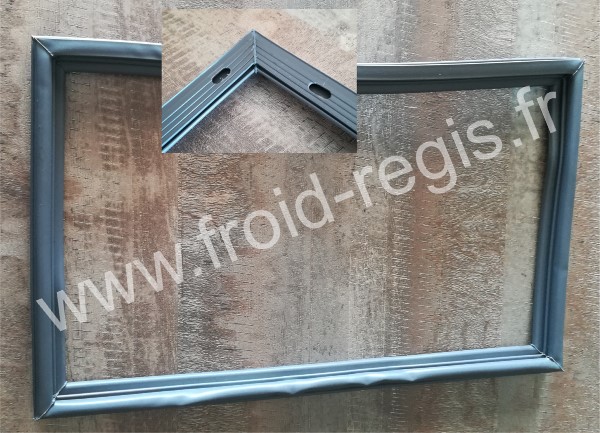

02	HOS-E02-10	enlarge	Door gasket OLD fixing against door for IM21-25-30_CLE 375 x 230 mm code 3H0165-02 Replaced by complete door price on request	-	No longer available
02	HOS-E02-10N	enlarge	Door gasket NEW fixing clipped for IM21-25-30_CLE New code 3Y8291P01 Thank you to specify the model and serial number of your machine they are indispensable	69	Model and serial Shipping out Metropolitan France. "click here". in stock or 72h
02	HOS-E02-15	enlarge	Door gasket OLD fixing against door for IM45_LE code 3H0160-02 Replaced by complete door price on request	-	No longer available
02	HOS-E02-15N	enlarge	Door gasket NEW fixing clipped for IM45_LE 480 x 300 mm New code 3Y8291P02 Thank you to specify the model and serial number of your machine they are indispensable	71	Model and serial Shipping out Metropolitan France. "click here". in stock or 72h
02	HOS-E02-20	enlarge	Door gasket OLD fixing against door for IM45_CLE-IM65_LE code 3H0161-03 Replaced by complete door price on request	-	No longer available
02	HOS-E02-20N	enlarge	Door gasket NEW fixing clipped for IM45_CLE-IM65_LE 605 x 300 mm New code 3Y8291P03 Thank you to specify the model and serial number of your machine they are indispensable	73	Model and serial Shipping out Metropolitan France. "click here". in stock or 72h
02	HOS-E02-25	enlarge	Door gasket OLD fixing against door for IM100CLE_LE IM130ME-IM240M2E code 3H1431-03 Replaced by complete door price on request	-	No longer available
02	HOS-E02-25N	enlarge	Door gasket NEW fixing clipped for IM100CLE_LE IM130ME-IM240M2E New code 3Y8291P04 Thank you to specify the model and serial number of your machine they are indispensable	86	Model and serial Shipping out Metropolitan France. "click here". in stock or 72h

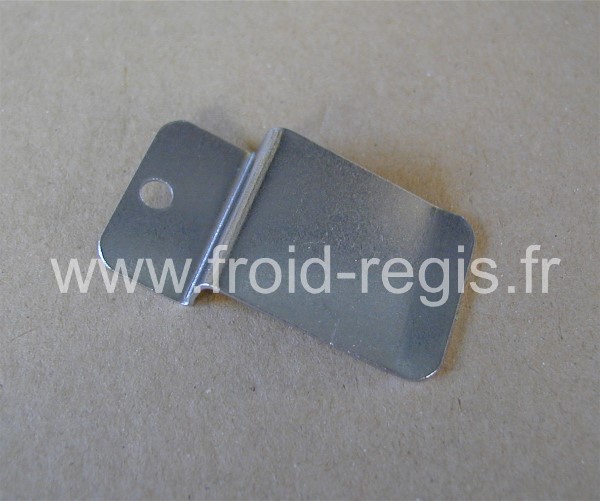

05	HOS-E05	enlarge	Catch slope OLD code 4H0439-01 Thank you to specify the model and serial number of your machine they are indispensable	19	Model and serial Shipping out Metropolitan France. "click here". in stock or 72h
05	HOS-FN03	-	Catch slope NEW code 4X7644-01 Thank you to specify the model and serial number of your machine they are indispensable	19	Model and serial Shipping out Metropolitan France. "click here". in stock or 72h
16	HOS-A16	-	Spring door + Hook for IM_CLE-LE Thank you to specify the model and serial number of your machine they are indispensable	76	Model and serial Shipping out Metropolitan France. "click here". in stock or 72h

Other parts price on request
